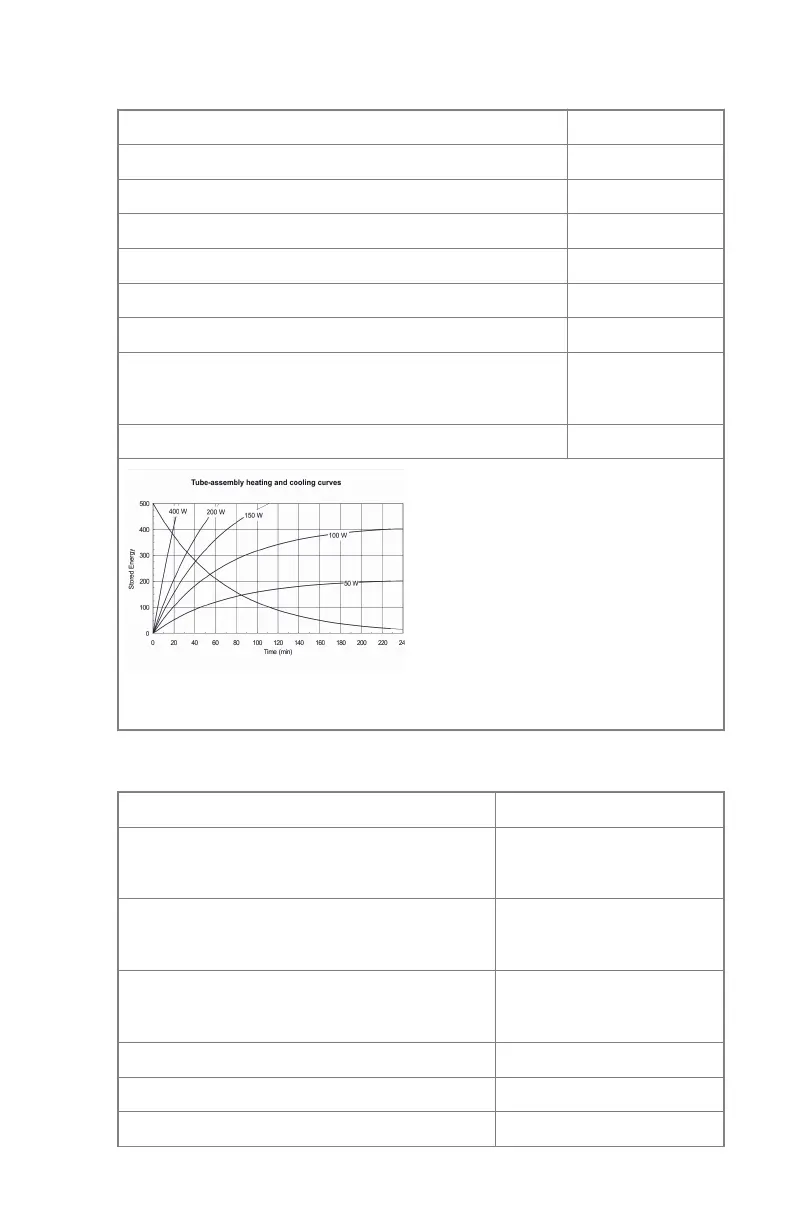

Table 36: X-ray tube assembly
Model C31
Maximum voltage to the tube 150 kV
Maximum thermal capacity 500 kJ
Maximum continuous heat dissipation 120 W
Minimum inherent filtration @75 kV 1.2 mm Al
Additional filtration 0.3 mm Al
Mininimum total filtration 1.5 mm Al
Maximum radiation leakage
(at 1 m)
20 mR/h
Thermal safety 67 °C ± 3° C
Figure 72: Heating and cooling curves
Table 37: X-ray tube
Model RTM 72 HS
Nominal focus dimension (IEC 60336)
0.6 mm small focus
1.2 mm large focus
Rotation speed
3000 rpm (f = 50 Hz)
3600 rpm (f = 60 Hz)
Nominal anodic power (IEC 60613)
17 kW small focus
43 kW large focus
Anodic diameter 73 mm (2.9 inch)
Anodic material RT-TZM
Anodic angle 12.5°
DR 100s | Product Information | 181
