Agilent Technologies 1260 Infinity G1315D User Manual

170 Agilent 1260 Infinity DAD and MWD User Manual
9 Maintenance

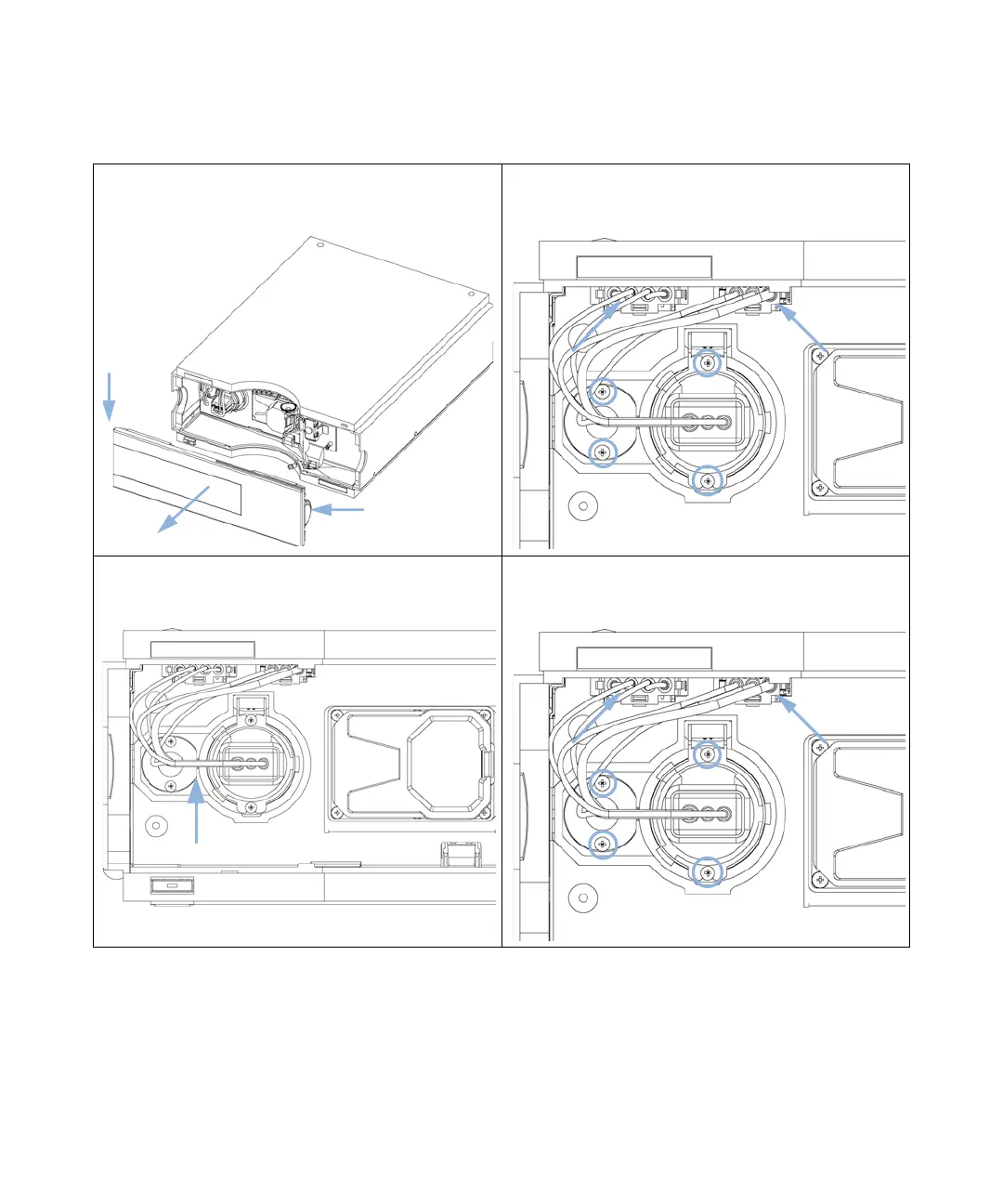

Exchanging a Lamp
1
Press the release buttons and remove the front cover to
gain access to the flow cell area.
2 Disconnect lamp from the connector, unscrew the
Vis-lamp (left) and/or UV-lamp (right) and remove the
lamp. Do not touch the glass bulb with your fingers.
3 When replacing the Vis-lamp, assure that the Vis-lamp is
inserted as shown (flat edge towards the deuterium
lamp).
4 Insert the lamp. Fix the screws and reconnect the lamp
to connector.

Agilent Technologies 1260 Infinity G1315D Specifications

General

Brand	Agilent Technologies
Model	1260 Infinity G1315D
Category	Laboratory Equipment
Language	English
