Agilent Technologies 1260 Infinity G1315D User Manual

Agilent 1260 Infinity DAD and MWD User Manual 85
Using the Detector
4
Special Settings of the Detector
Analog Output Settings
To change the Output Range of the analog outputs see “Control Settings” on
page 78.
1 To change the offset and the attenuation select Analog Outputs.
2 Change the ranges for absorbance and wavelength according your needs.
3 Change the values if required.

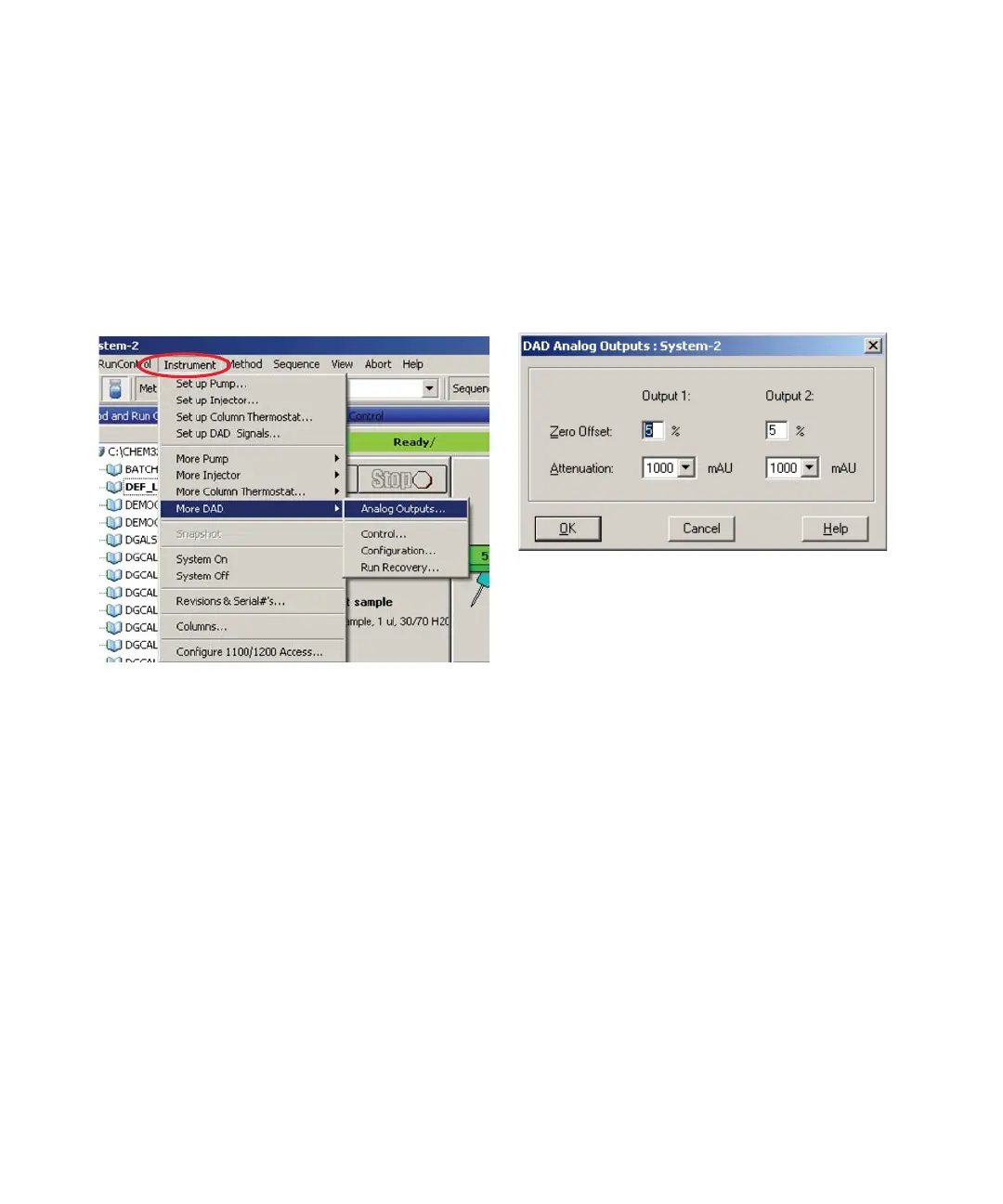

Figure 27 Analog Output Settings
Zero Offset Limits: 1 to 99 % in steps of 1 %
Attenuation Limits: 0.98 to 2000 mAU at discrete values
for either 100 mV or 1 V full scale
