42 Agilent 1260 Infinity DAD and MWD User Manual
3
Installing the Module
Optimizing the Stack Configuration
Two Stack Configuration
To avoid excessive height of the stack when the autosampler thermostat is
added to the system it is recommended to form two stacks. Some users prefer
the lower height of this arrangement even without the autosampler
thermostat. A slightly longer capillary is required between the pump and
autosampler. (See Figure 5 on page 42 and Figure 6 on page 43).

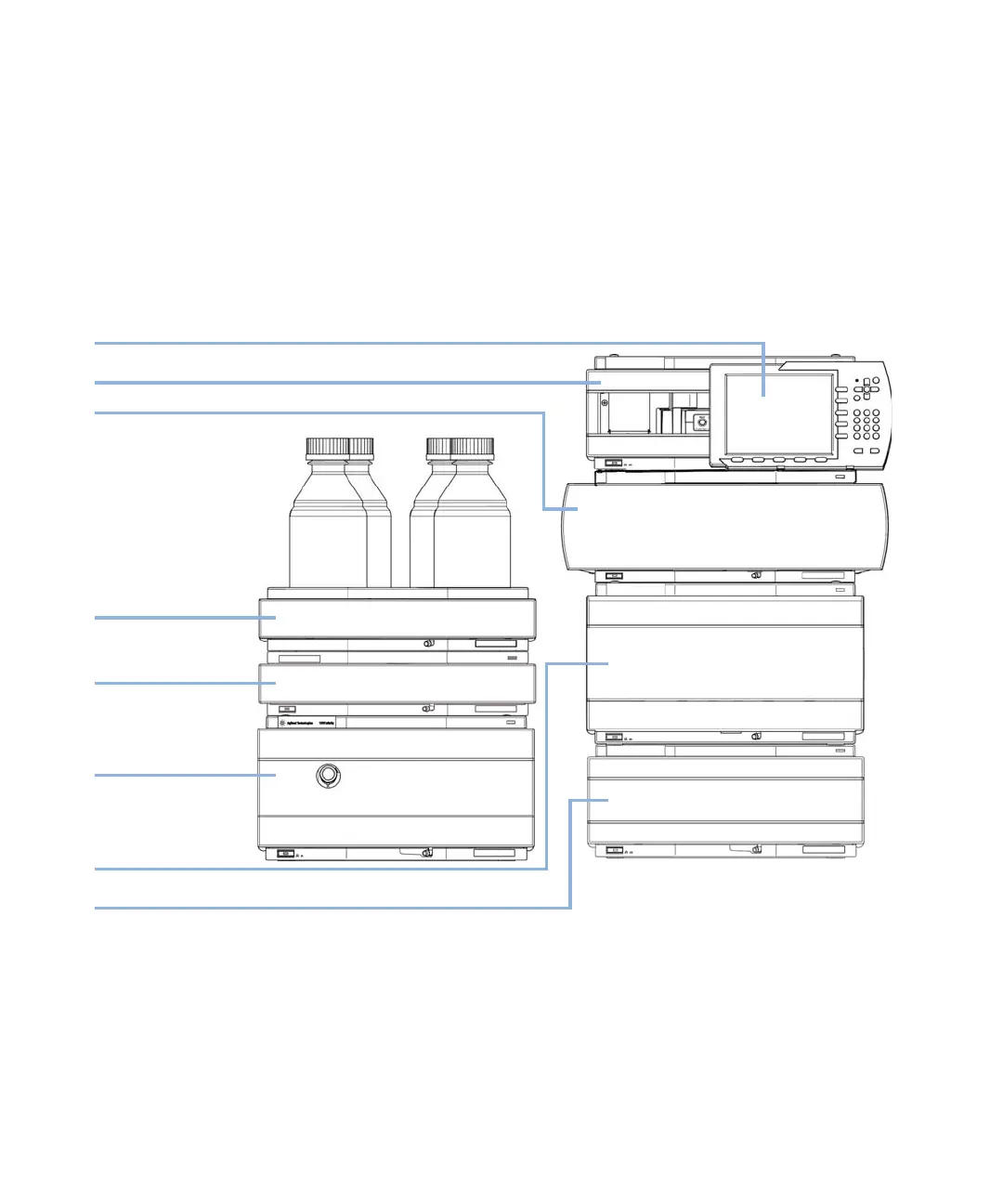

Figure 5 Recommended Two Stack Configuration for 1260 Infinity (Front View)
,QVWDQW3LORW
'HWHFWRU
&ROXPQFRPSDUWPHQW
6ROYHQWFDELQHW
'HJDVVHURSWLRQDO
3XPS
7KHUPRVWDWIRUWKH$/6)UDFWLRQFROOHFWRURSWLRQDO
$XWRVDPSOHU$/6)UDFWLRQFROOHFWRU
To Next Page
