Installing the Module
3
Installation Information on Leak and Waste Handling

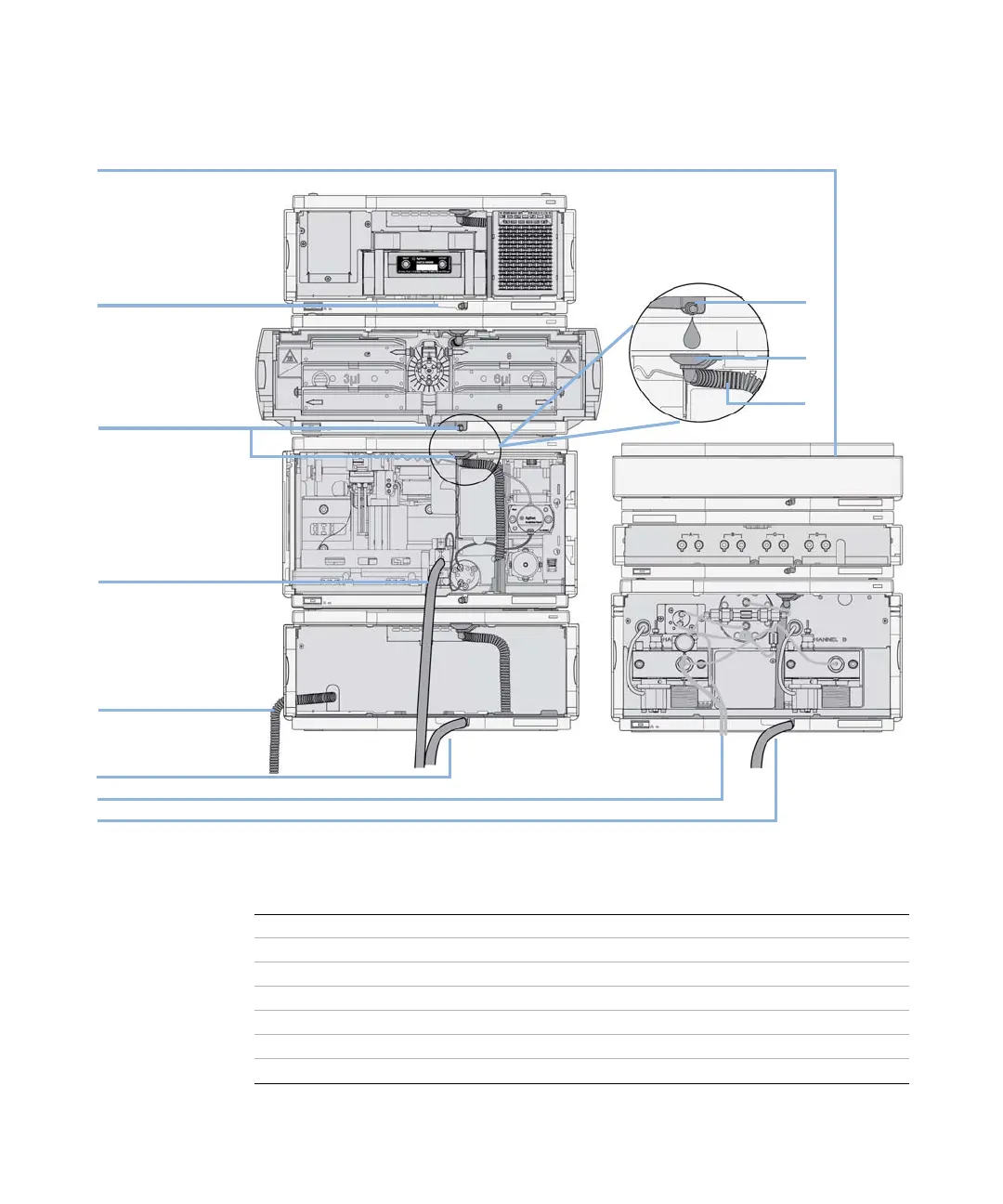

Figure 7 Leak and waste handling (overview - typical stack configuration as an
example)

$
%
&







1 Solvent cabinet
2Leak pan
3 Leak pan's outlet port (A), leak funnel (B) and corrugated waste tube (C)
4 Waste tube of the sampler’s needle wash
5 Condense drain outlet of the autosampler cooler
6 Waste tube of the purge valve
7 Waste tube
