ICP Expert Diagnostics

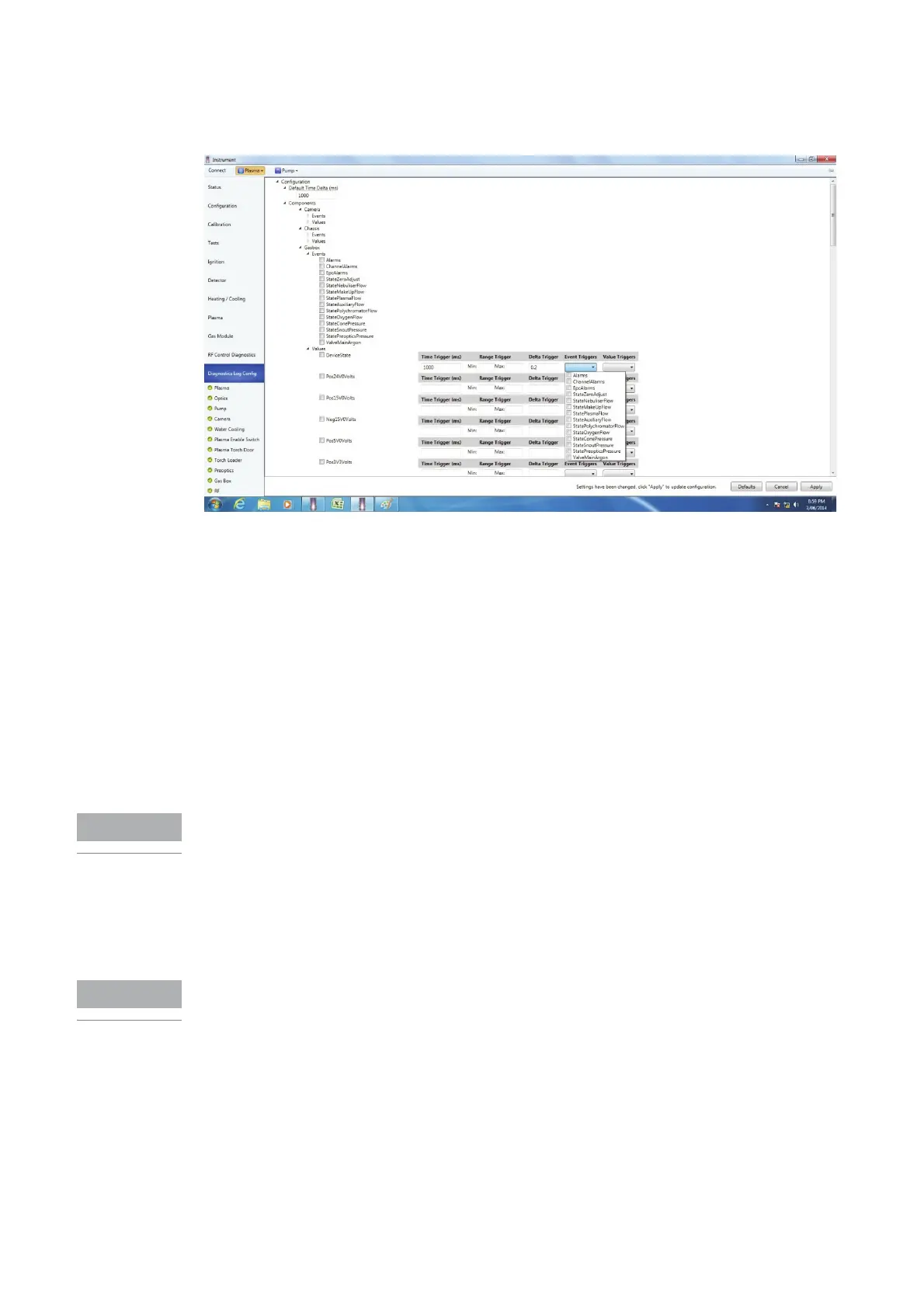

Diagnostics Log Config screen can be used to log data and capture events over time.
There are 2 approaches available.
• Events (Events will log a status if a change occurs and that event is ticked).
• Values (Values will log a value every 1000ms (default) if that value is ticked and none of the
constraints (Time trigger, Range trigger and Delta trigger) have been specified).
If “Values” selected:
1 Select the value to monitor with a tick in the corresponding check box.
2 Select the constraints that are required to trigger a log and when:
• Range trigger (Anything outside this range will trigger a log).
• Delta trigger (Any delta (difference) greater than the value entered will trigger a log
provided the value is outside the Range trigger aswell).
If there is no value in the Delta box nothing will log regardless of information being in Range and
Time trigger.
• Event trigger (allows the intial value to log assuming it meets the criteria if an alarm from
another event occurs).
• Value trigger (Can link this to log a value from another parameter if that parameter is also
ticked to log).
This will only be true for values within a particular group, i.e.: Can’t link values in RF section with
values in Gas Control section.
3 Enter logging interval if trigger criteria met (Time trigger). (Defaults to 1000ms if no value
entered).
4 Click on Apply.
