Agilent 5110/5100 ICP-OES Service Manual Agilent Restricted 79
4 Removal/ Installation, Replacement and Adjustment

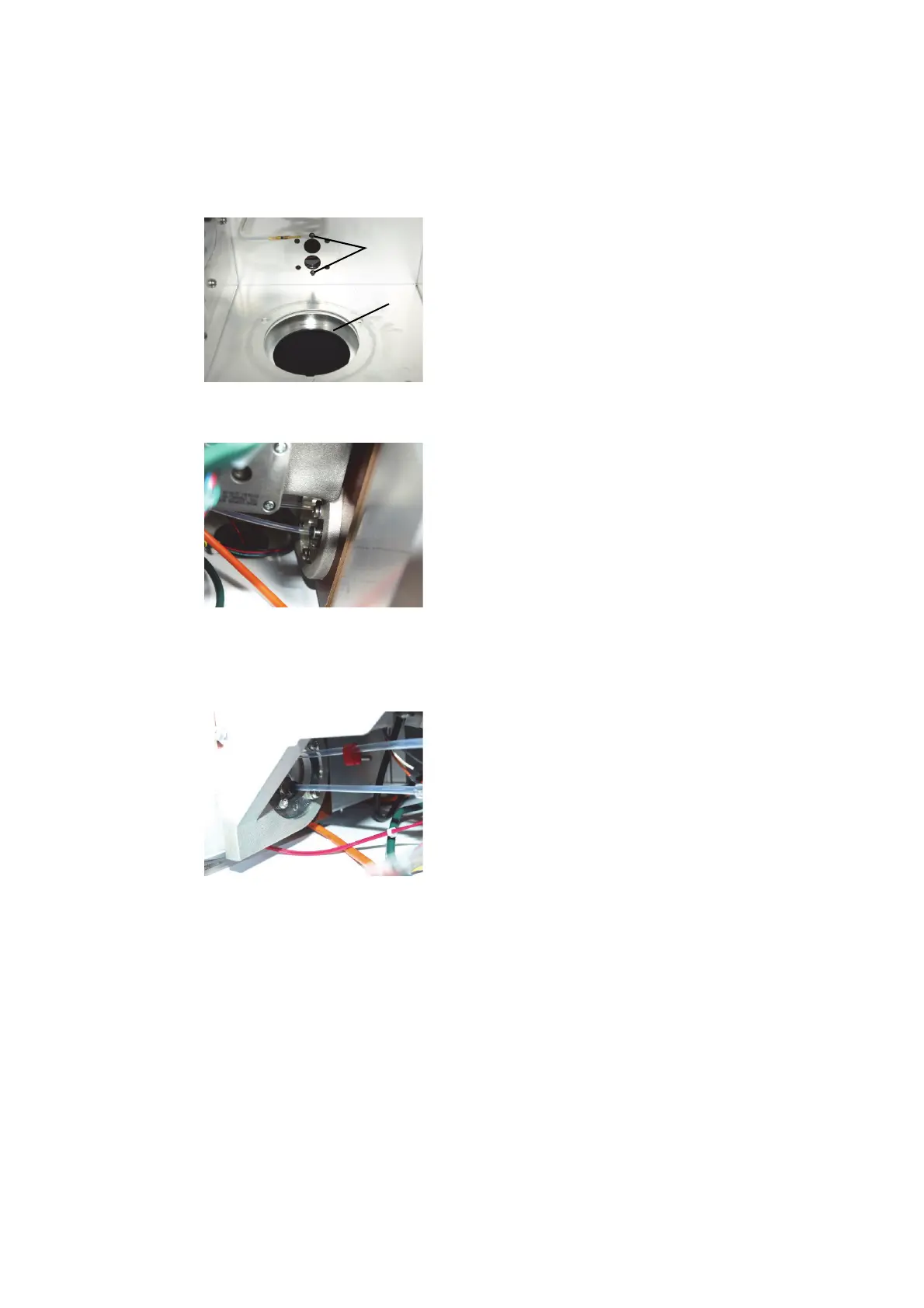

Torch loader
9 If Torch Loader (as shown in previous picture) is tight to move or align use a spanner or
similar tool resting on a socket (as shown) to raise RF box slightly. This will allow some
freedom to remove and replace the loader.
10 Replacing casting is reverse process but ensure the white interlock collet is correctly
positioned on the casting and the casting locates into the dowel pins.
11 When reinstalling torch loader casting the sequence of tightening screws is very important to
ensure optical alignment remains undisturbed.
12 Tighten the 4 screws that hold the torch loader casting onto the pre optics casting (do not
over tighten) before tightening the 3 x 5mm screws in the sample compartment.
13 Install gas fittings and reconnect gas tubing by pushing tubing home. (Red into upper fitting).
Locating pins
Locating bracket
