238 5977B Series MSD Troubleshooting and Maintenance Manual
9 Parts
Analyzer
Table 24 and Figure 60 show the analyzer chamber and associated parts.
Table 25 and Figure 61 on page 239 (non-HES version) or Figure 62 on
page 240 (HES version) show the replacement parts for the analyzer. Analyzer
screws are listed in the tables that follow.
Tab le 24 Analyzer chamber and related parts
Description Part number
Calibration bulb G3170-80002
Vent valve knob G7077-20554

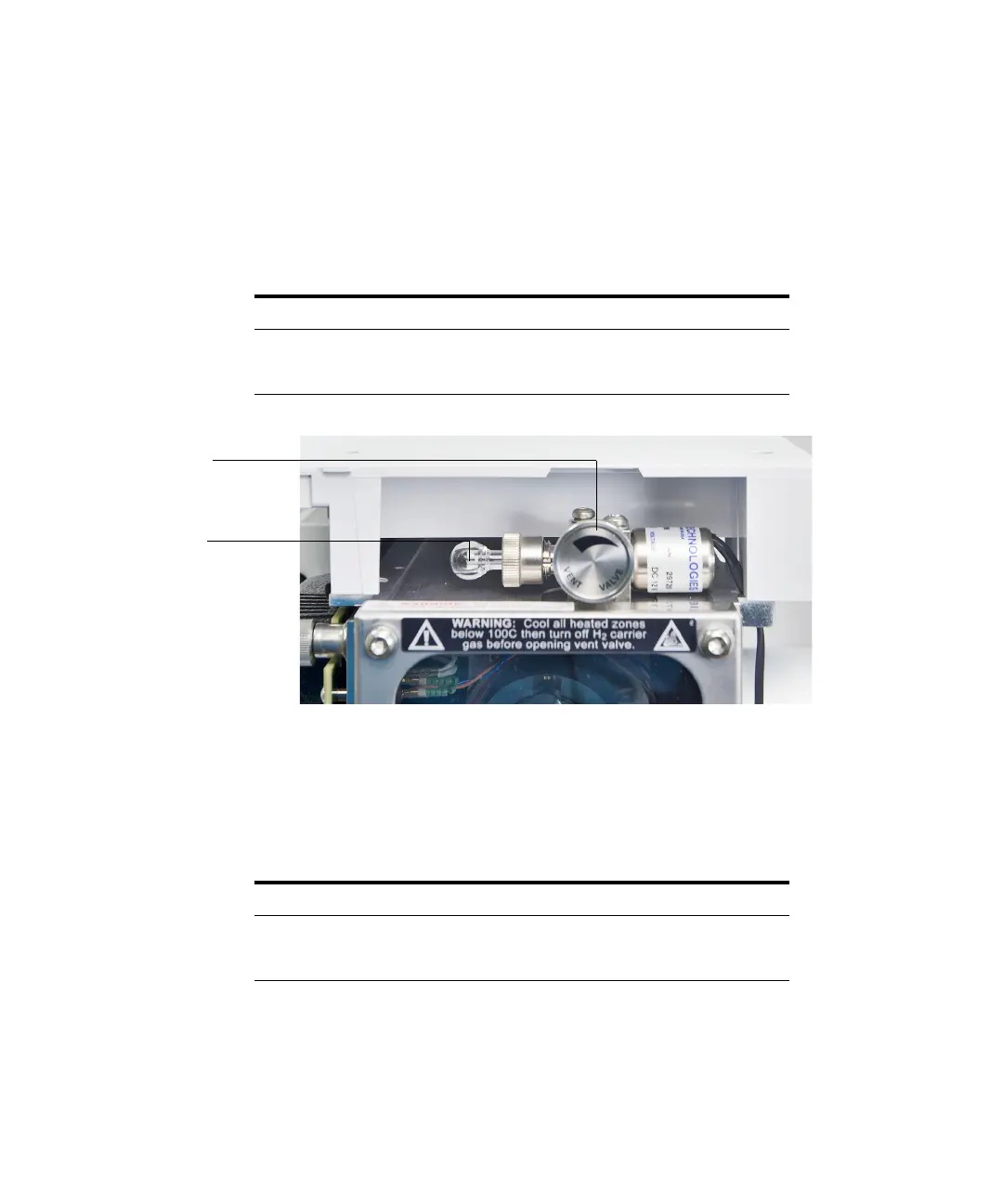

Figure 60 Analyzer chamber and related parts
Calibration bulb
Vent valve knob
Tab le 25 Analyzer parts
Description Part number
TAD assembly (Detector, HED, bracket) G7002-80105
Detector (Electron multiplier horn) G7002-80103
EI 350 ion source, new
Turb o - inert
Diffusion - stainless steel
G3870-67700
G3870-67750
