310 Flame Ionization Detector (FID)
Replacement procedures
10 of 24
Jun 2001
Detectors
Agilent 6890 Gas Chromatograph Service Manual
2. Unclip the ignitor cable from the detector’s interface board on the right
side of the instrument.

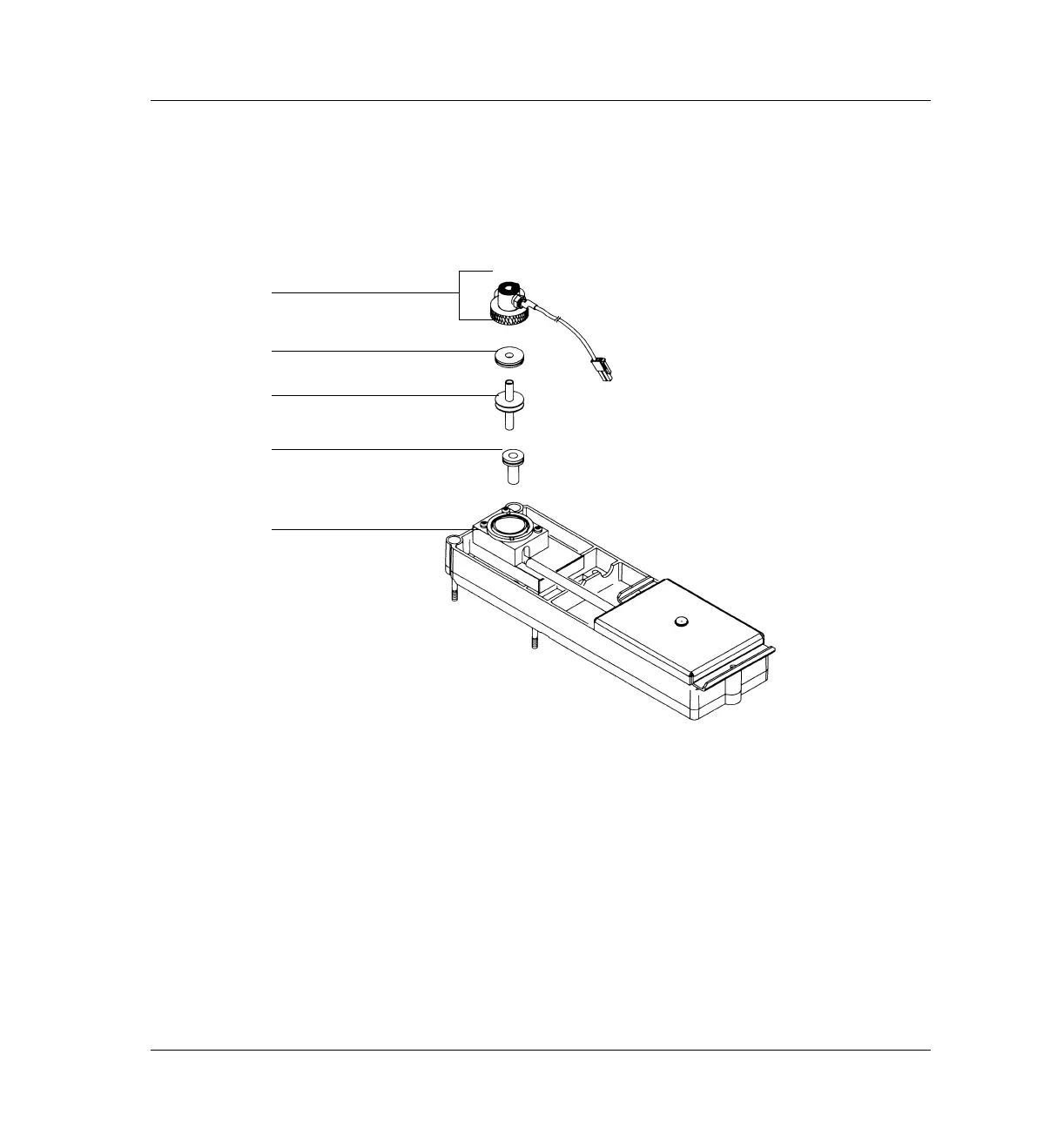

Figure 310-9 Collector assembly (exploded diagram)
3. Unscrew the knurled collector nut from the collector block.
4. Lift the collector nut, ignitor castle and ignitor cable assembly off of the
collector body.
5. Lift the collector from the collector housing. The upper insulator will be
on top of it.
6. If desired, remove the lower collector insulator with tweezers.
7. Reassembly is reverse of removal.
Collector nut/ignitor
castle/ignitor assembly
Upper collector insulator
Collector
Lower collector insulator
Collector block
