Agilent Technologies 6890 Plus User Manual

340 Electron Capture Detector (ECD)
Replacement procedures
16 of 24
Jun 2001
Detectors
Agilent 6890 Gas Chromatograph Service Manual
Replacing the detector interface card
The ECD detector interface board plugs into the main board as shown below.
1. Unlock and unclip the ribbon cable from the interface board.
2. Remove the screw at the top of the card where it mounts to the main
board and pull the card out.

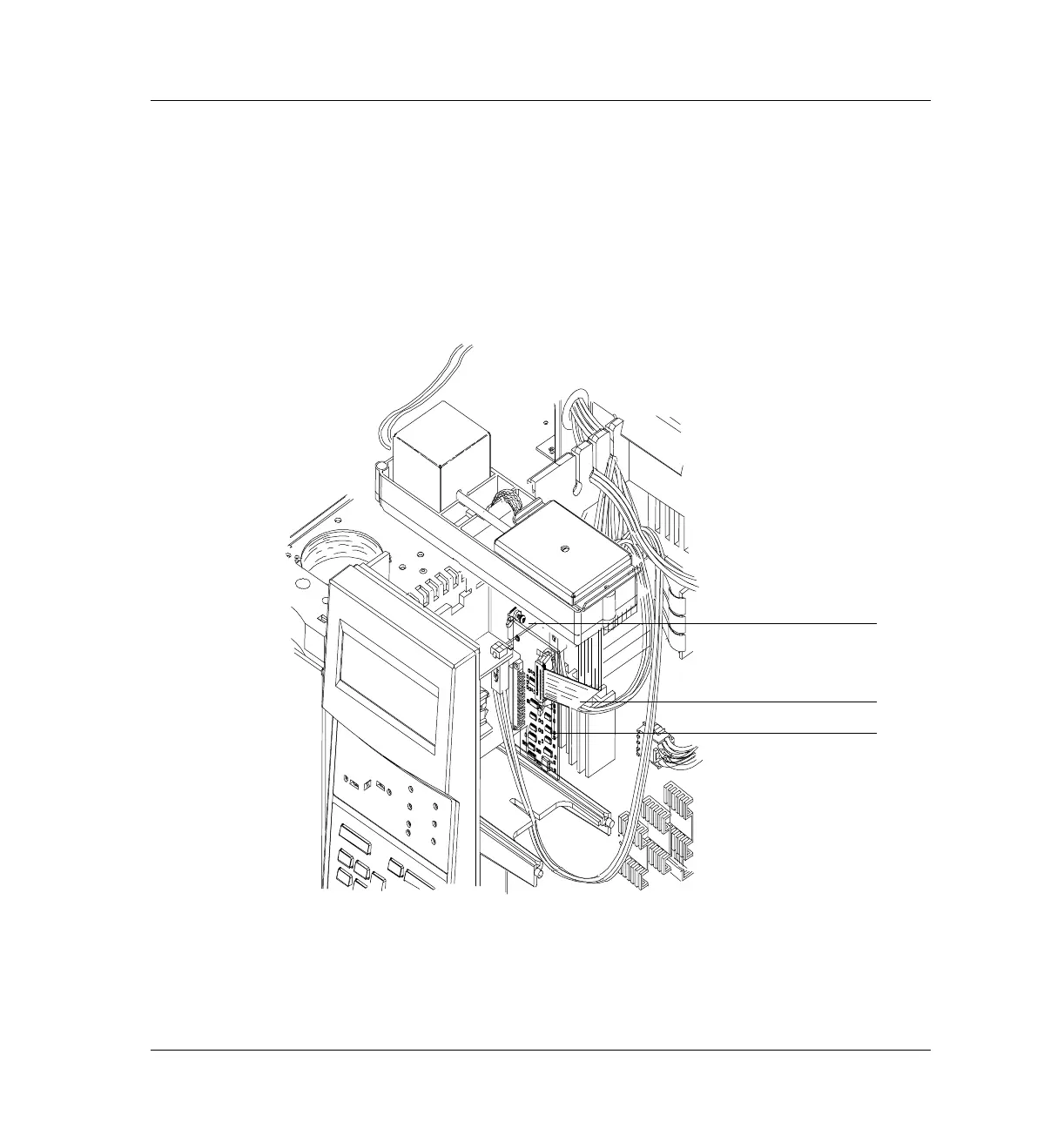

Figure 340-13 Detector interface board installed in back detector position
Detector card screw
Ribbon cable
ECD detector board
