Cabling Configuration and Electronics
Agilent 6890 Gas Chromatograph Service Manual
Cabling Diagrams, 6890N 1015
6890N GC Mass Selective Detector GC ChemStation GC Automatic Liquid Sampler
6890N GC
Mass Selective Detector
GC ChemStation
GC Automatic Liquid Sampler

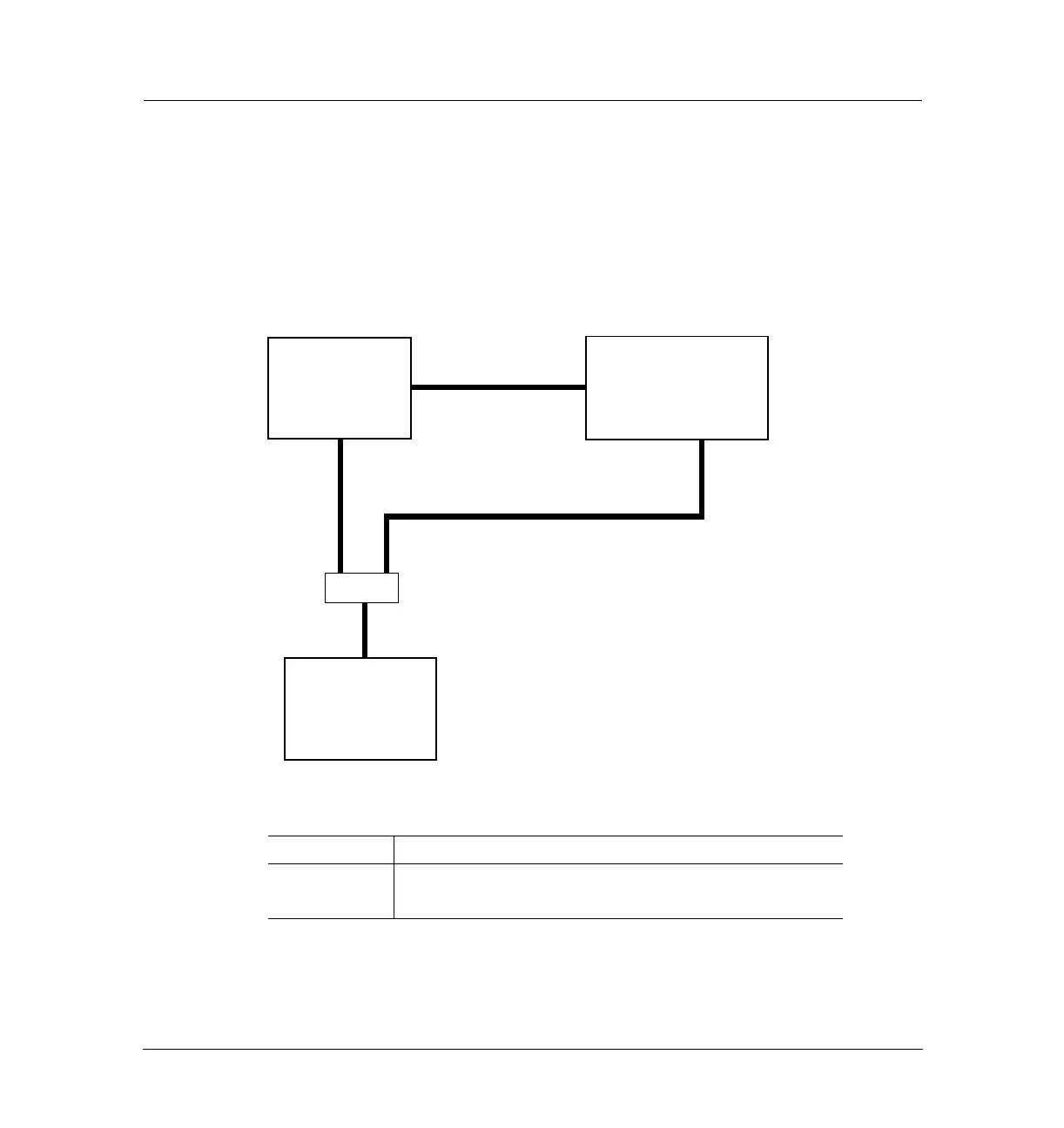

Figure 1015-3
Number Part no. and description
1 G1530-60930, 2-m APG remote cable, 9-pin male/9-pin male
2 G1530-61485, Cable, 100 Base T-LAN
6890N GC
GC ChemStation
MSD
1 APG remote
2 LAN
2 LAN
The 7683 ALS
controller is internal to
the 6890N GC.
The G2613A injector
and G2614A tray
plug into the GC.
Hub
