Agilent Technologies 6890 Plus User Manual

1020 Cable Electronics
Modem/RS-232C
12 of 18
Jun 2001
Cabling Configuration and Electronics
Agilent 6890 Gas Chromatograph Service Manual

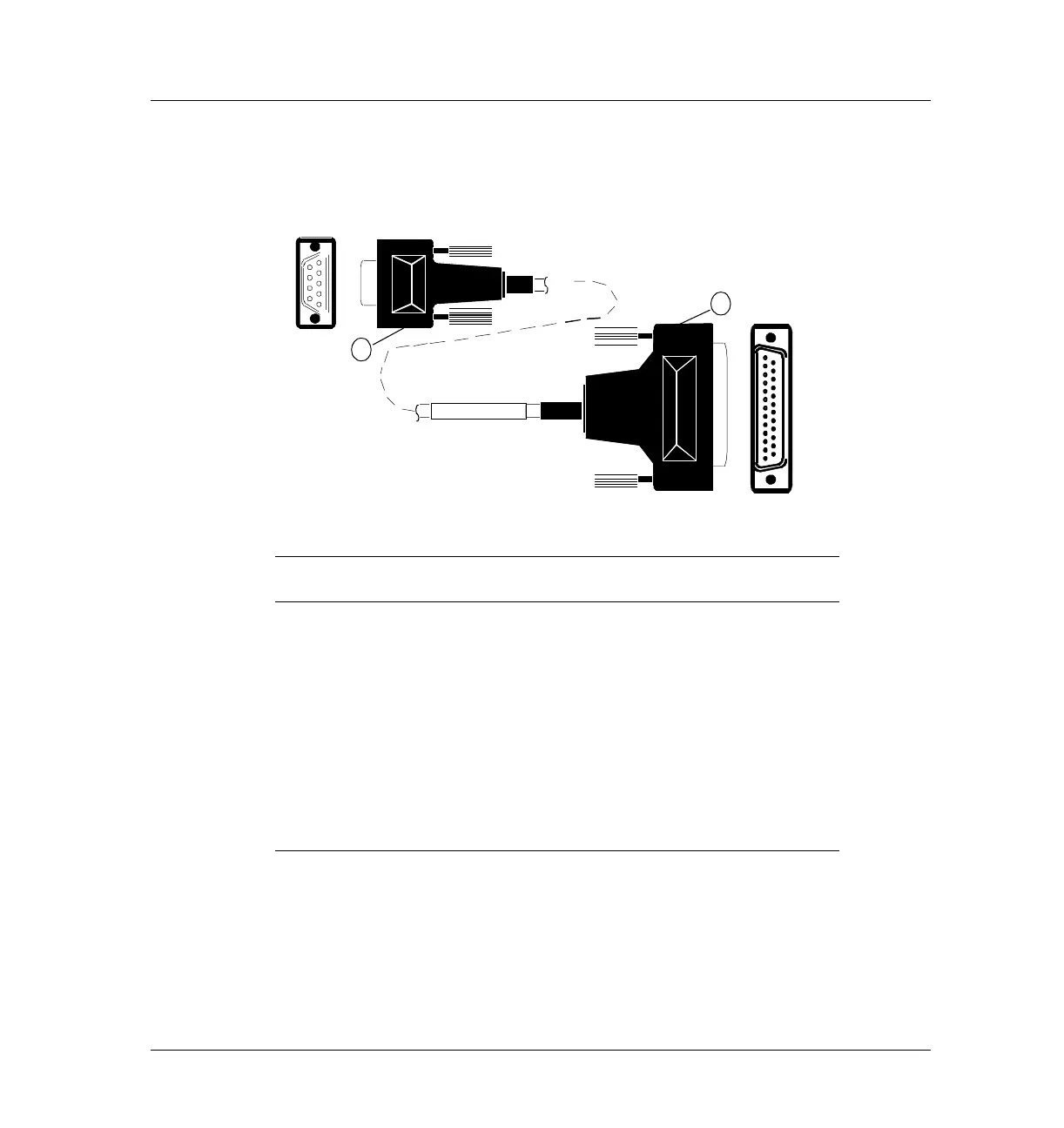

Cable pinouts, 6890 GC to Modem, 9-pin/25-pin
Connector 1 — 9 pin
(female)
Signal name
Connector 2 — 25 pin
(male)
1 DCD 8
2 RxD 3
3 Tx D 2
4 DTR 20
5 GND 7
6 DSR 6
7 RTS 4
8 CTS 5
9 (Unused) 22
9
6
5
1
14
25
1
13
24540-80012
Part no. 24540-80012 or 24542M
1
13
2
1
