1320 Detectors
Auxiliary flow block
30 of 30
Jun 2001
Illustrated Parts Breakdown
Agilent 6890 Gas Chromatograph Service Manual
Auxiliary flow block

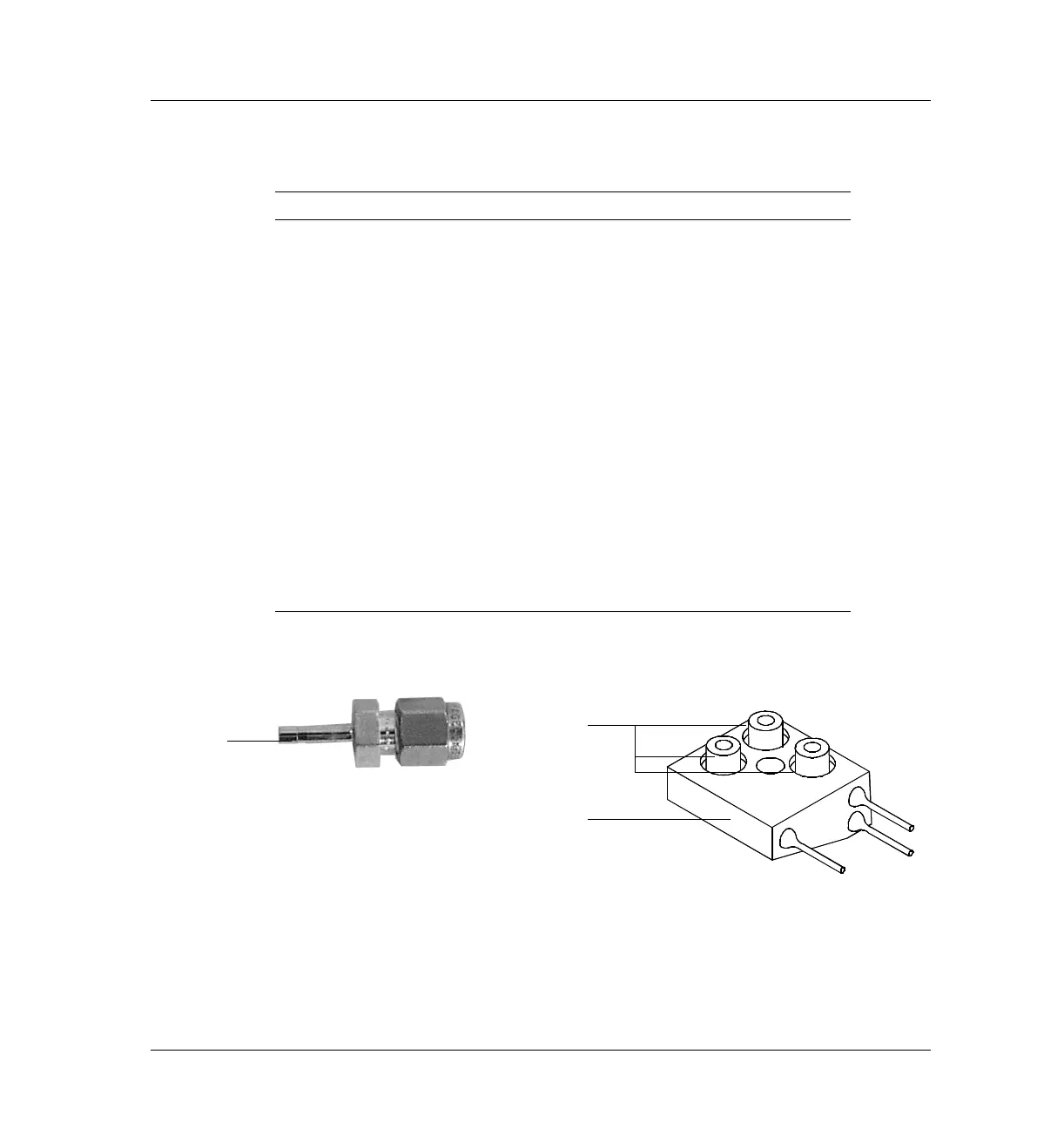

Figure 1320-15 Auxiliary flow block
Description Part no. Qty.
1. Exit fitting weldment
G1570-80500 1
2. Restrictors kit*, includes:
G1570-60540 1
FID H
2
(red dot)
19231-60770
FID air (brown dot)
19231-60610
NPD HYD (blue dot) 19234-60660
Zero resistance tube (brass tube)
G1570-20540
3. External flow restrictor (2/pk)
G1530-XXXXX
4. Replacement Aux EPC Manifold, Type 2, kit
(replaces either type)
G1570-64000 1
NS O-ring, 239-inch (part no. 5181-3345, 6/pk) 0905-1014 3
NS Aux EPC manifold only assy (Type 1) G1570-60520
NS Aux EPC kit G1570-60500
NS Aux EPC replacement kit G1570-64000
NS AED/AUX EPC (G2606A) G1570-60560
*Refer to 360 Auxiliary EPC, for more information
