1360 Electrical
Main circuit board, 6890N
8 of 16
Jun 2001
Illustrated Parts Breakdown
Agilent 6890 Gas Chromatograph Service Manual
Main circuit board, 6890N
Download firmware upgrades from www.agilent.com.

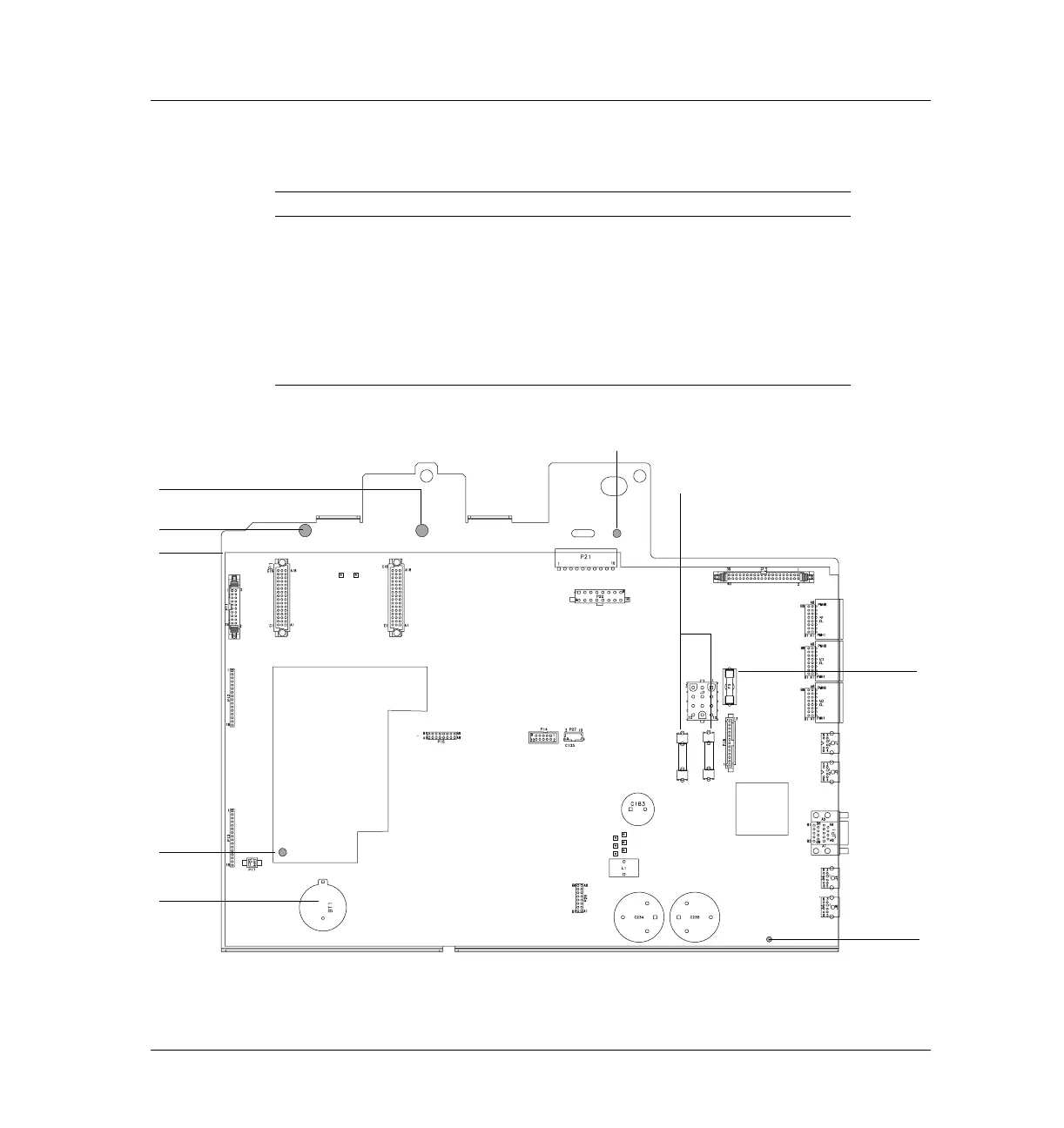

Figure 1360-4 Main circuit board, 6890N
Description Part no. Qty.
1. Main board assembly G1530-62000 1
2. Hex screw, self-tapping 0624-0665 3
3. Grounding screw, M4 × 25 mm, Torx, T-20 0515-2712 2
4. Glass fuse, type F, 8A/250V 2110-0036 2
5. Ceramic fuse, E 5A 250V F 2110-0709 1
6. Battery, 3V 1420-0523 1
NS Connector plate, 6890N G1530-01320 1
-24V
-15V
GND
+24V
+15V
+5V
-10V REF
GND
P2
F4 F5
1
2
4
3
3
2
2
5
6
To Next Page
