Agilent Technologies 8720E Series User Manual

1-93
Making Measurements
Using Bandwidth Limits to Test a Bandpass Filter

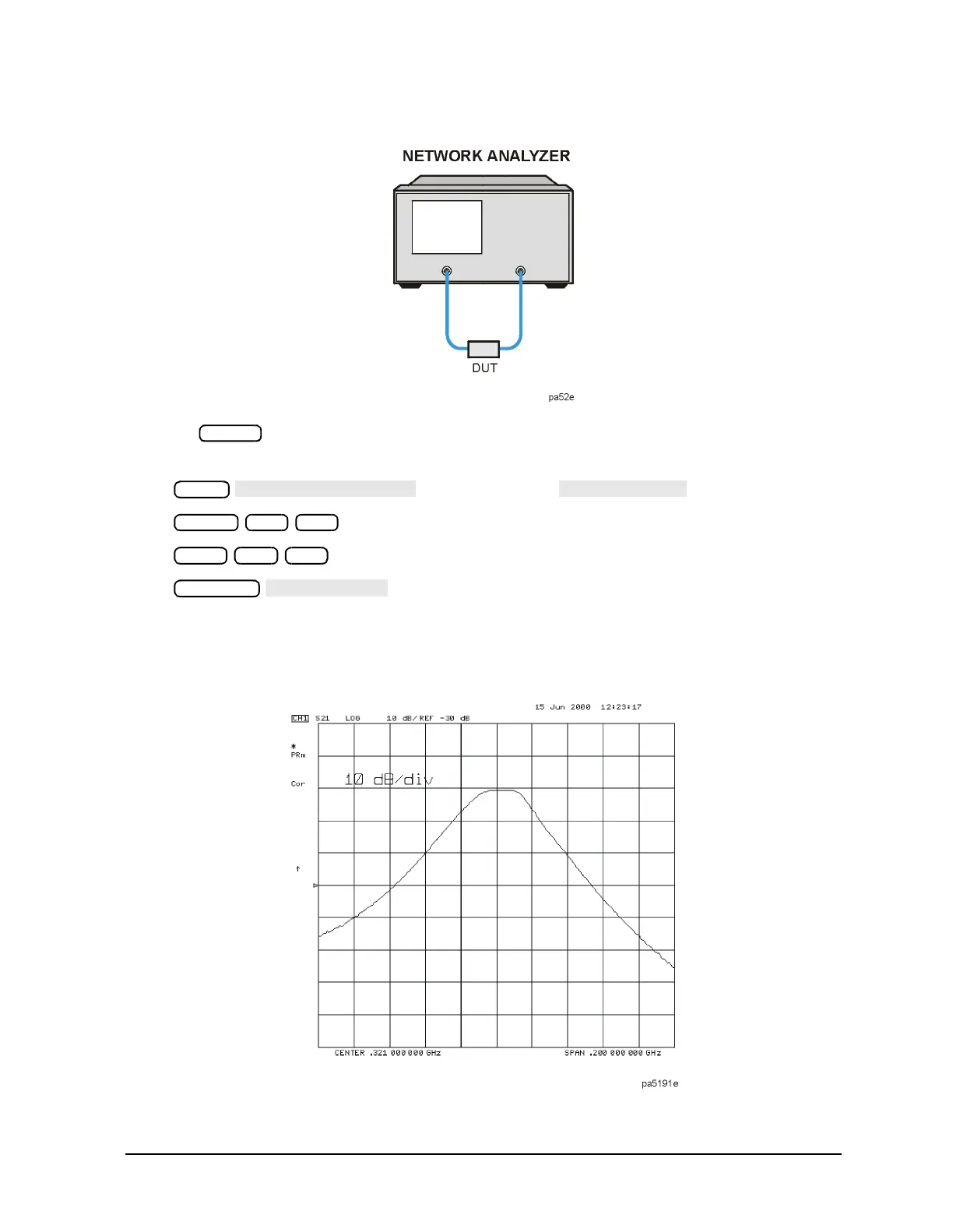

Figure 1-72 Connections for a Bandpass Filter Example Measurement
2. Press and choose the measurement settings. For this example, the
measurement settings are as follows:
a. or on ET models:
b.
c.
d.
You may also want to select settings for the number of data points, power, averaging,
and IF bandwidth.
Figure 1-73 Filter Pass Band Before Bandwidth Test
Preset
Meas
Trans: FWD S21 (B/R)
TRANSMISSN
Center 321 M/µ
Span 200 M/µ
Scale Ref
AUTO SCALE
