Printing, Plotting, and Saving Measurement Results
Configuring a Print Function
Configuring a Print Function
All copy configuration settings are stored in non-volatile memory. Therefore, they are not
affected if you press or switch off the analyzer power.
1. Connect the printer to the interface port.

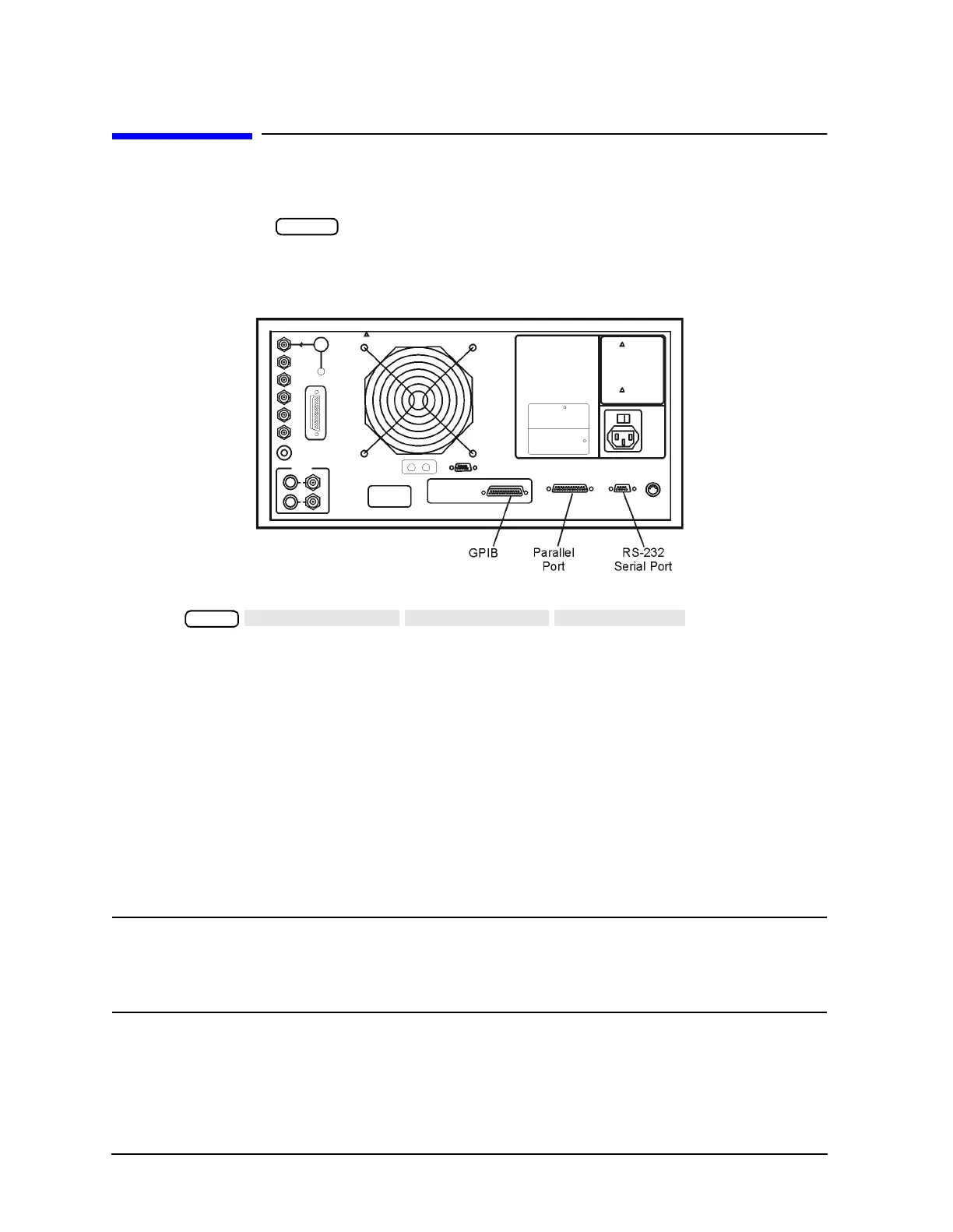

Figure 4-1 Printer Connections to the Analyzer
2. Press until the correct
printer choice appears:
❏ ThinkJet (QuietJet)
❏ DeskJet (This supports most current models such as DeskJet 890C, DeskJet 895C, or
DeskJet 1600C. See also DJ 540 selection.)
❏ LaserJet (only LaserJet models III, 4, 5, and 6)
❏ PaintJet
❏ Epson-P2 (printers that conform to the ESC/P2 printer control language, such as
Epson LQ-570)
❏ DJ 540 (This can be used for printers that do not support 100 dots per inch (dpi) but
do support 300 dpi such as HP DeskJet 540 or 850C.)
NOTE Selecting DJ 540 converts 100 dpi raster information to 300 dpi raster format.
If your DeskJet printer does not support the 100 dpi raster format and your
printing results seem to be smaller than the normal size (approximately
one-half of the page), select DJ 540.
Information regarding a printer compatibility guide (an up-to-date list of printers that
are compatible with the network analyzer) is available in "Printing or Plotting Your
Measurement Results" on page 4-3.
