Agilent Technologies 8720E Series User Manual

1-35
Making Measurements
Using Markers
Setting the Stop Frequency
1. Press and turn the front panel knob, or enter a value from the front panel
keypad to position the marker at the value that you want for the stop frequency.
2. Press to change the stop frequency value to the value of the active
marker.

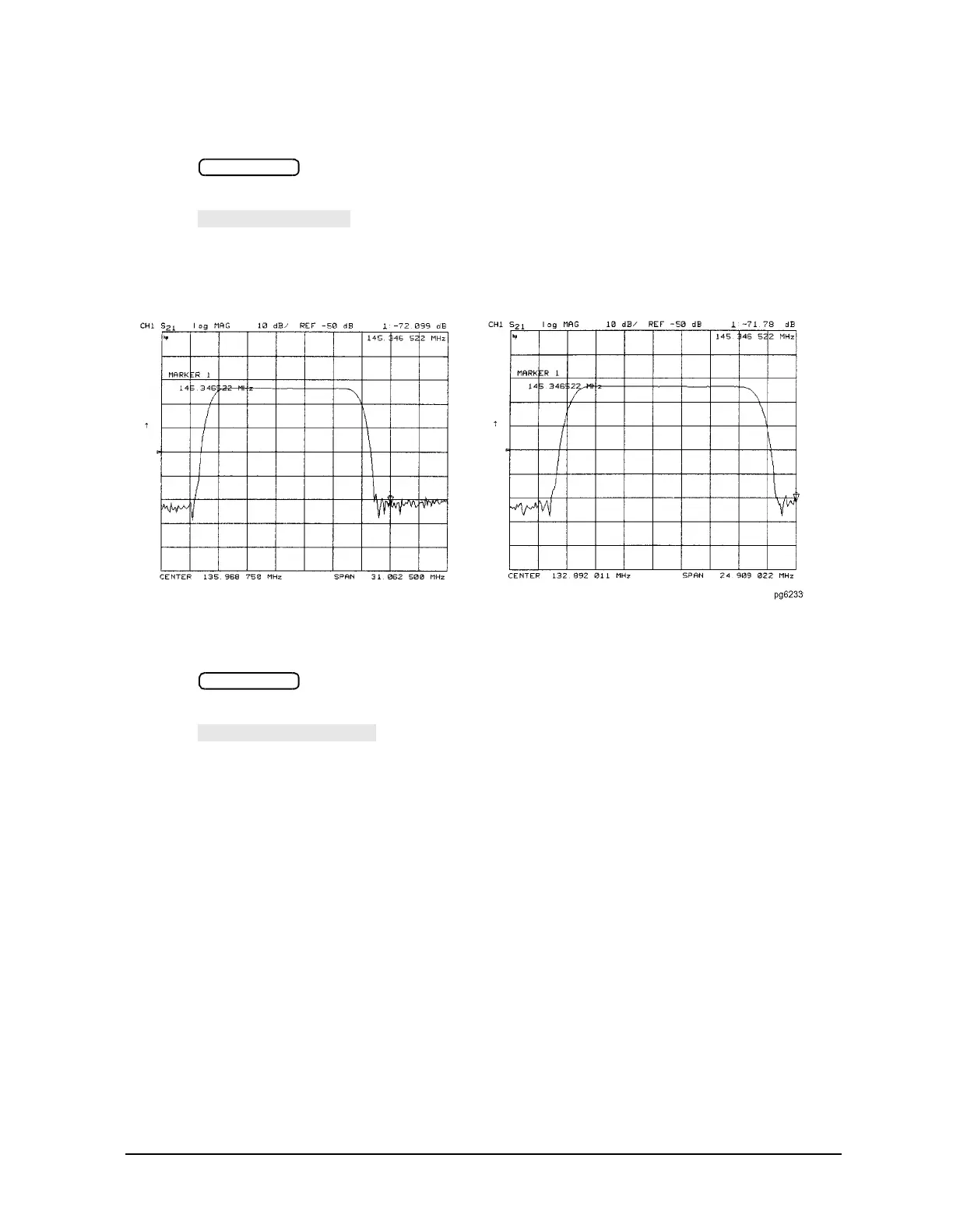

Figure 1-23 Example of Setting the Stop Frequency Using a Marker
Setting the Center Frequency
1. Press and turn the front panel knob, or enter a value from the front panel
keypad to position the marker at the value that you want for the center frequency.
2. Press to change the center frequency value to the value of the
active marker.
Marker Fctn
MARKER→STOP
Marker Fctn
MARKER→CENTER
