Making Mixer Measurements (Option 089 Only)
Conversion Loss Using the Frequency Offset Mode
Setting Measurement Parameters for the Power Meter Calibration
1. Connect the measurement equipment as shown in Step 1 of Figure 2-11.

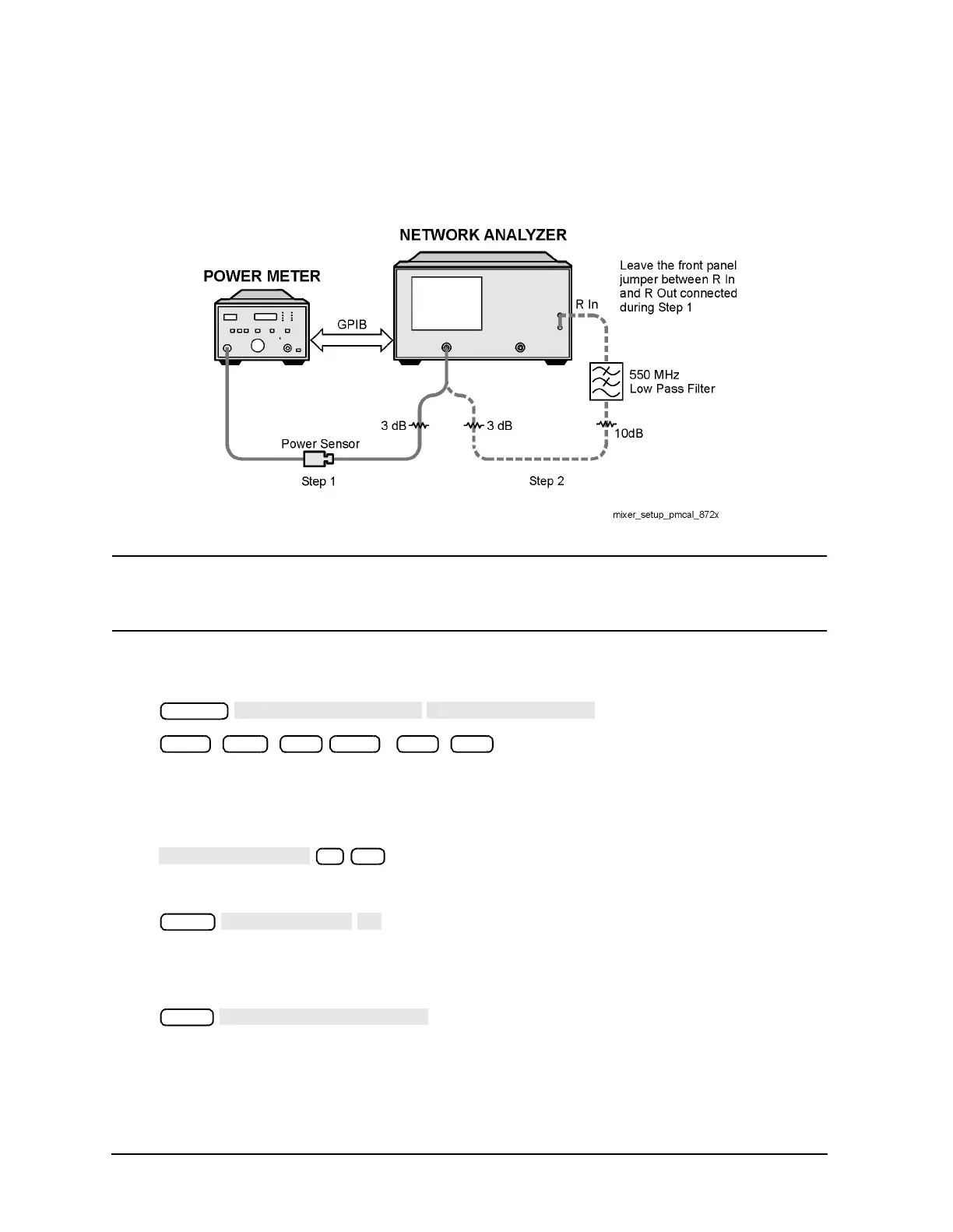

Figure 2-11 Connections for R Channel and Source Calibration
CAUTION Note that the front panel jumper between R In and R Out must remain
installed during the procedure steps that use the connections in Step 1 of
Figure 2-11.
2. From the front panel of the analyzer, set the desired receiver (RF) frequency and source
output power by pressing:
Note that these are the example RF start and stop frequencies. Enter the
RF start and stop frequencies for your measurement instead.
If the LO frequency is not set to 0 Hz, press:
3. To select the measurement trace, press:
The measurement trace is shown on the display.
4. Select the analyzer as the system controller:
System
Start
M/µ Stop
M/µ
0 x1
Meas
Local
To Next Page
