Making Measurements
Using Limit Lines to Test a Device
5. To terminate the flat line segment by establishing a single point limit, press:
Figure 1-59 shows the flat limit lines that you have just created with the following
parameters:
• stimulus from 127 MHz to 140 MHz
• upper limit of −21 dB
• lower limit of −27 dB

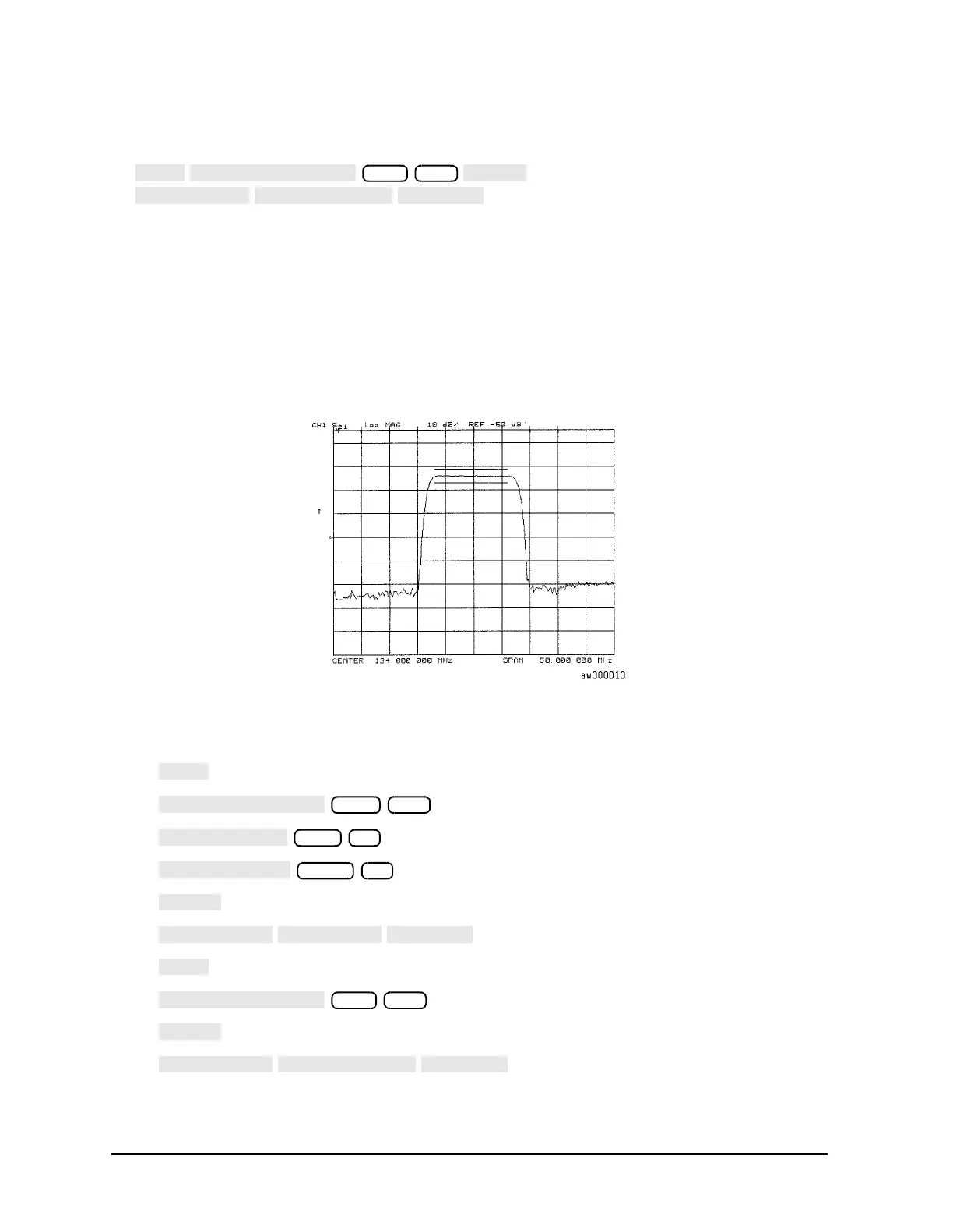

Figure 1-59 Example Flat Limit Line
• To create a limit line that tests the low side of the filter, press:
ADD
STIMULUS VALUE
140
M/µ
DONE
LIMIT TYPE
SINGLE POINT
RETURN
ADD
STIMULUS VALUE
100 M/µ
UPPER LIMIT
−65 x1
LOWER LIMIT
−200 x1
DONE
LIMIT TYPE
FLAT LINE
RETURN
ADD
STIMULUS VALUE
123 M/µ
DONE
LIMIT TYPE
SINGLE POINT
RETURN
