Printing, Plotting, and Saving Measurement Results
Configuring a Plot Function
Configuring a Plot Function
All copy configuration settings are stored in non-volatile memory. Therefore, they are not
affected if you press or switch off the analyzer power.
Peripheral Interface Recommended Cables
Parallel 92284A
GPIB 10833A/33B/33D
Serial 24542G
1. Connect the peripheral to the interface port using the recommended cable from the
following list.

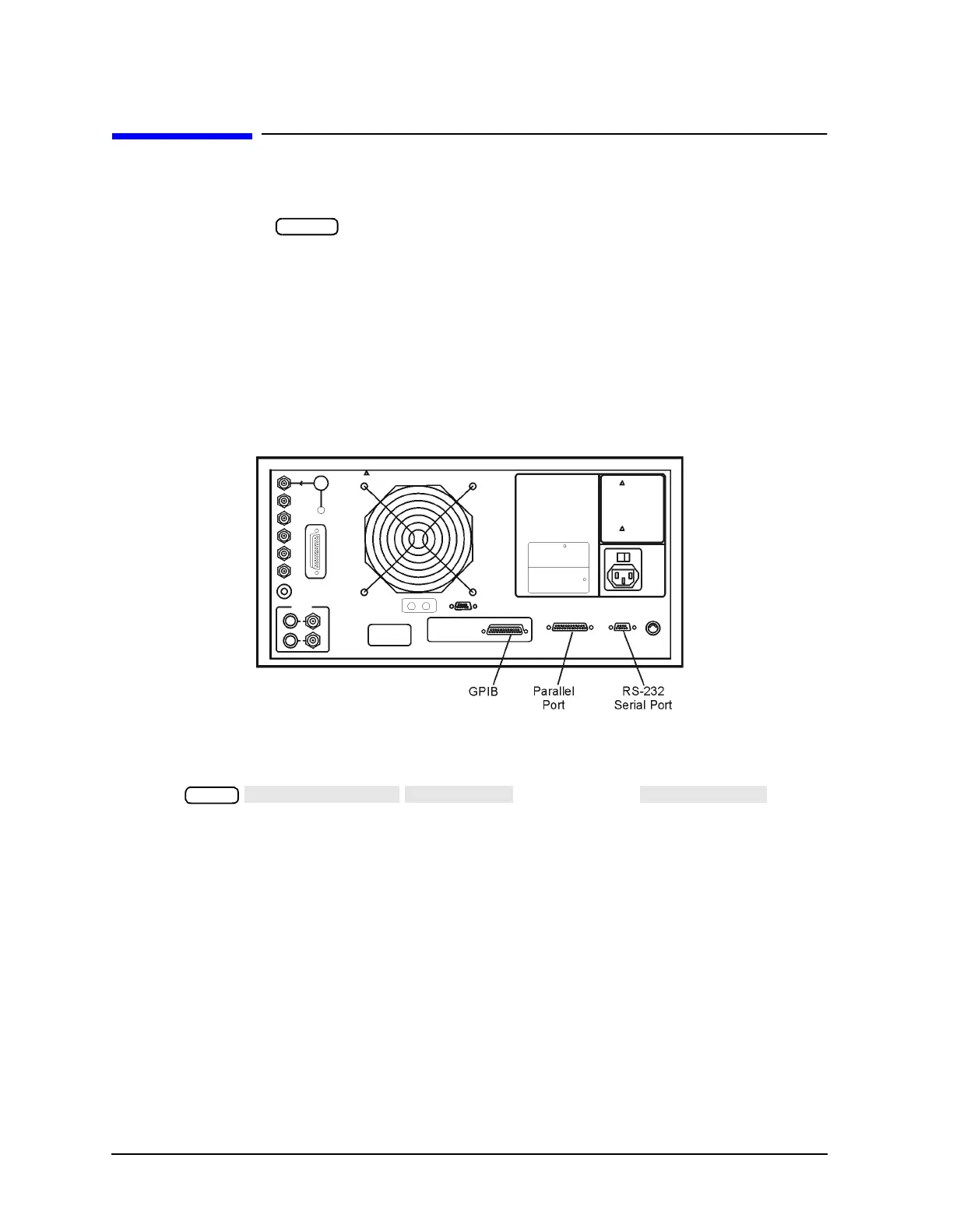

Figure 4-3 Peripheral Connections to the Analyzer
If You Are Plotting to an HPGL/2 Compatible Printer
2. Press and then press until
HPGL PRT appears.
Preset
Local
To Next Page
