Agilent Technologies B1500A Self-Paced Training Manual

4-24

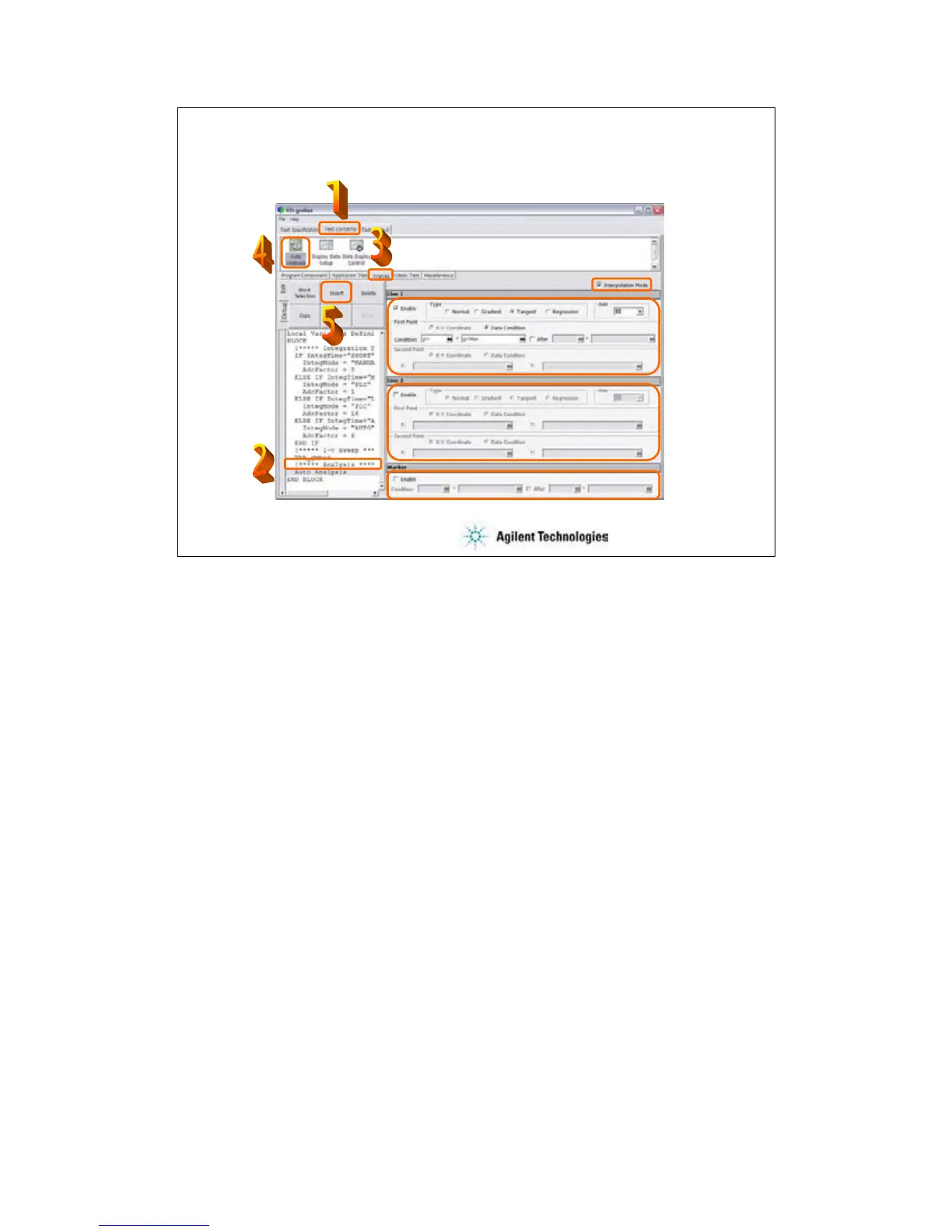

To Use Auto Analysis Function
Interpolation
Line 1 setup
Line 2 setup
Marker setup
Marker
This area sets the marker automatically displayed and moved to the specified position after the
measurement.
Check Enable box to enable the marker.
For Condition, enter a variable name and a condition expression to specify where you want the
marker to display.
For After, check this box to enable the additional condition. And enter a second variable and
condition expression. This sets up a search start condition for finding specified point.
For example, you can specify the following expressions to search for a measurement point that
satisfies the first condition after the second condition is satisfied.
Condition: [DGM] = [MAX(DGM)*0.01] [x] After [DGM] = [MAX(DGM)]
