Agilent Technologies B1500A Self-Paced Training Manual

4-17

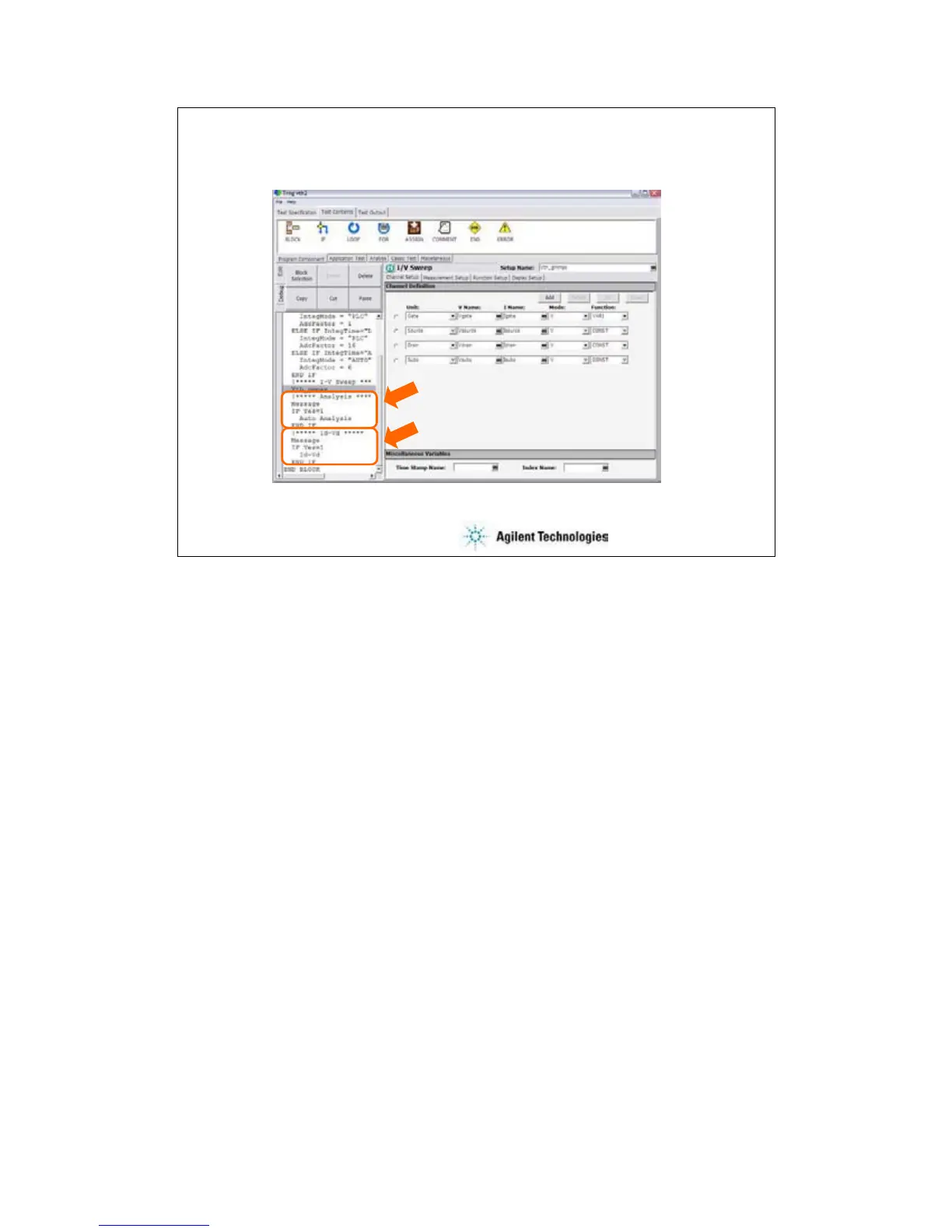

Modification Example
Test Definition editor
The lines perform auto analysis if Yes
button is clicked.
The lines perform Id-Vd measurement
if Yes button is clicked
Modification example for step 4.
! ***** Analysis *****
Message
If Yes=1
Auto Analysis
END IF
! ***** Id-Vd *****
Message
If Yes=1
Id-Vd
END IF
Setup example of the first message box:
Message=Do you want to perform auto analysis?
Button 1: Label=Yes, Selected=Yes
Button 2: Label=No
Setup example of the second message box:
Message=Do you want to perform Id-Vd measurement?
Button 1: Label=Yes, Selected=Yes
Button 2: Label=No
