Agilent Technologies B1500A Self-Paced Training Manual

2-23

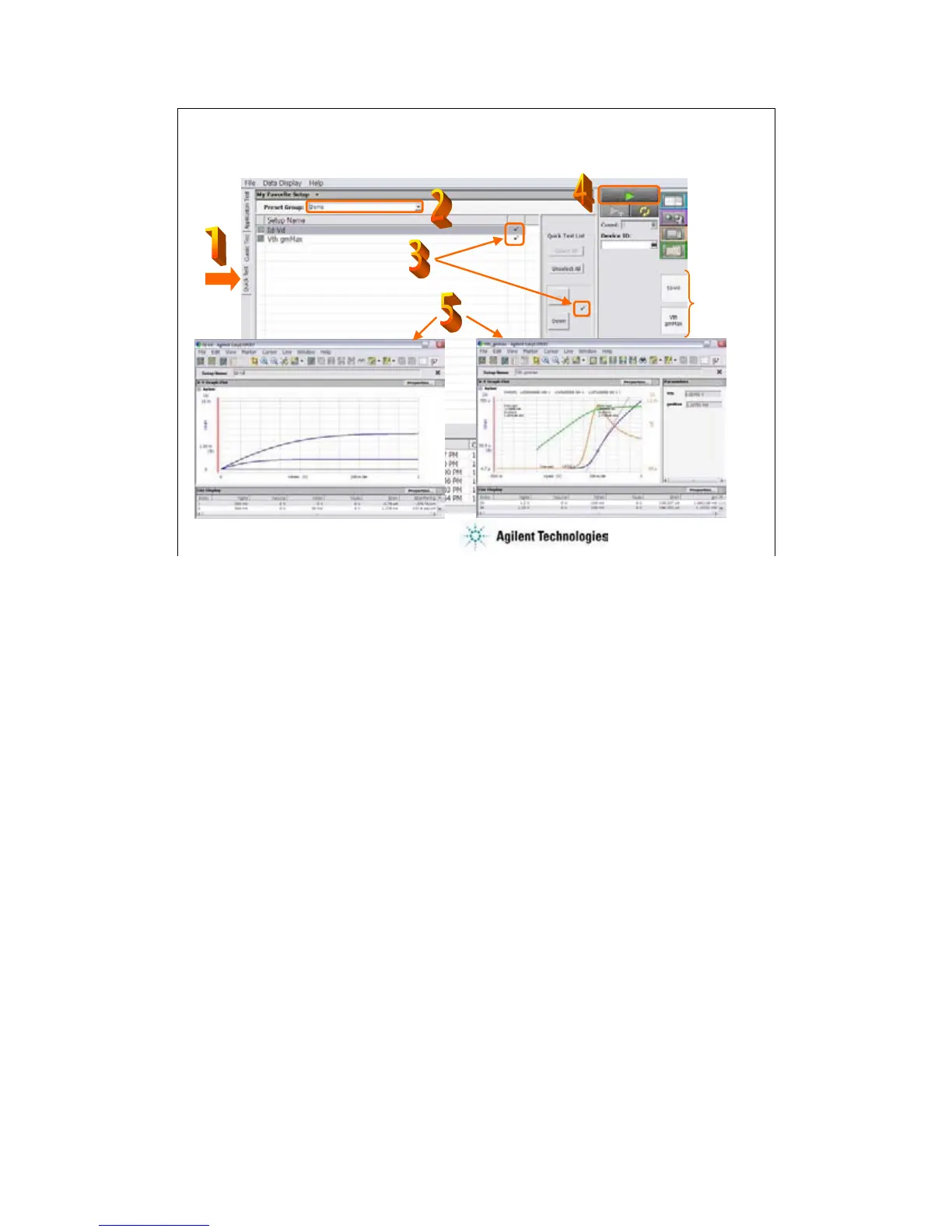

To Perform Quick Test
Softkeys
for single
measurement
Step 1: Click Quick Test tab.
Step 2: Select the Preset Group.
Step 3: Mark (check) the test setups to be executed while the Quick Test is executed.
Step 4: Connect DUT, and click the Single button. The B1500A starts the selected tests from top
to bottom in the list.
After the test, the test result data is displayed on the Data Display window. And the Test Result
Editor is also displayed on the lower left area of the B1500 screen.
Step 5: Analyze the measurement result data.
The measurement result record is automatically stored in the internal hard disk drive.
The softkeys placed right side of the LCD are used to trigger a single measurement of the
associated test.
