To Set Pulse Output
Measurement Setup
Period
Hold time
Width
Width
Delay time cannot be set.
Trigger
Base

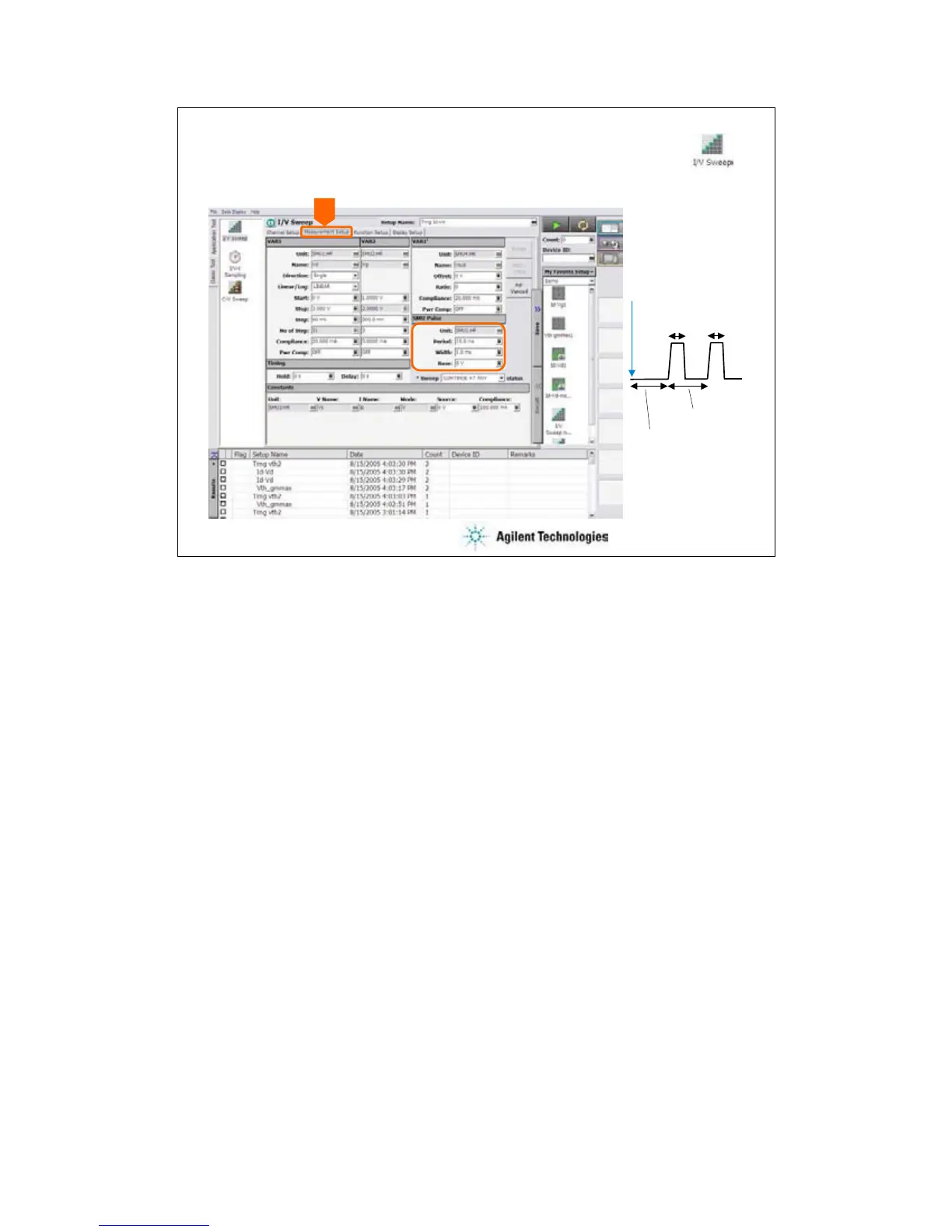

At the SMU Pulse area, you set the SMU pulse timing parameter and the pulse base value.
•Unit: SMU name or number
•Period: Pulse period
•Width: Pulse width
•Base: Pulse base value
Only a SMU can be set to the pulse source.
