Switching Matrix
Configuration

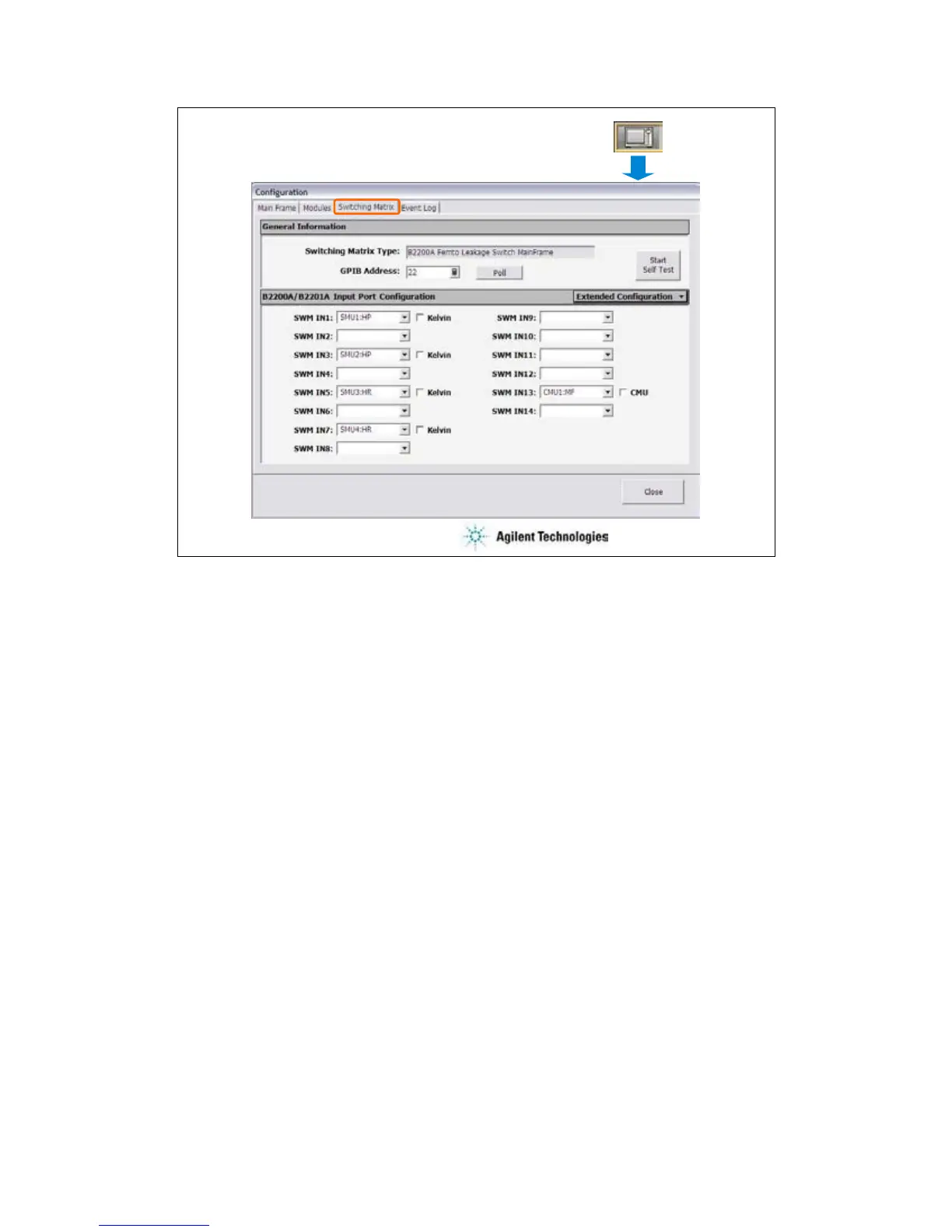

The Switching Matrix screen is used to establish the GPIB connection with Agilent
B2200A/B2201A switching matrix and define the B2200A/B2201A input port connections.
Switching Matrix Type: Displays the type of the switching matrix. B2200A Femto Leakage Switch
Mainframe, B2201A 14ch Low Leakage Switch Mainframe, or No Switching Matrix.
GPIB Address: Specifies the GPIB address of the B2200A/B2201A. 1 to 30.
Poll: Confirms if the B2200A/B2201A with the specified GPIB Address is connected to the
B1500A.
Start Self Test: This button starts the B2200A/B2201A selftest.
SWM IN: SWM IN1 to SWM IN14 mean the B2200A/B2201A input ports 1 to 14 respectively.
Enter the label used to specify the input port to the right entry field. The port name and the
connected module name can be the label. : (colon) cannot be used.
If the Kelvin check box is checked, the coupled even number port is grayed out.
If the CMU check box is checked, the SWM IN14 is grayed out.
Kelvin: Check this box if this port is used for the Kelvin connection.
CMU: To perform capacitance measurement, check this check box and set SWM IN13 to
CMU1:MF. And connect MFCMU to B2200A/B2201A Input 13 and 14. To perform capacitance
compensation, see User’s Guide.
Extended Configuration: This button opens the Extended Configuration dialog box.
