Agilent Technologies B1500A

3-14
Data Status

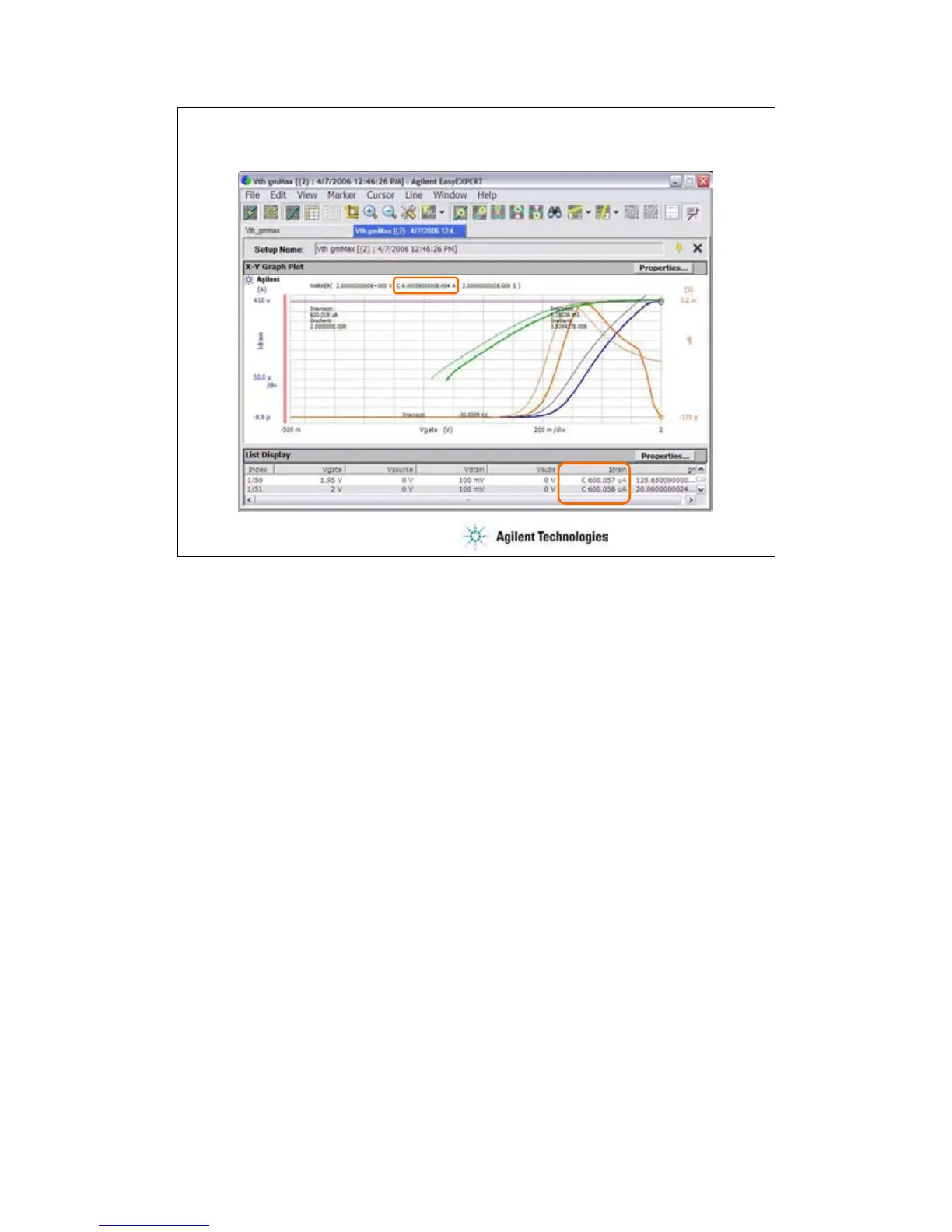

If measurement unit detects any status while measurement, the status code is recorded with the
measurement data. In this example, a SMU detected the compliance condition in the drain
channel, so the status code C is put just before the Idrain value.
SMU status code:
• C: Compliance
• T: Other channel compliance
• X: Oscillation
•V: Overflow
MFCMU status code:
• U: Unbalance
• D: I/V amp saturation
•V: Overflow
