To Manage Data Display Window
Data Display > Default Data Display Properties…

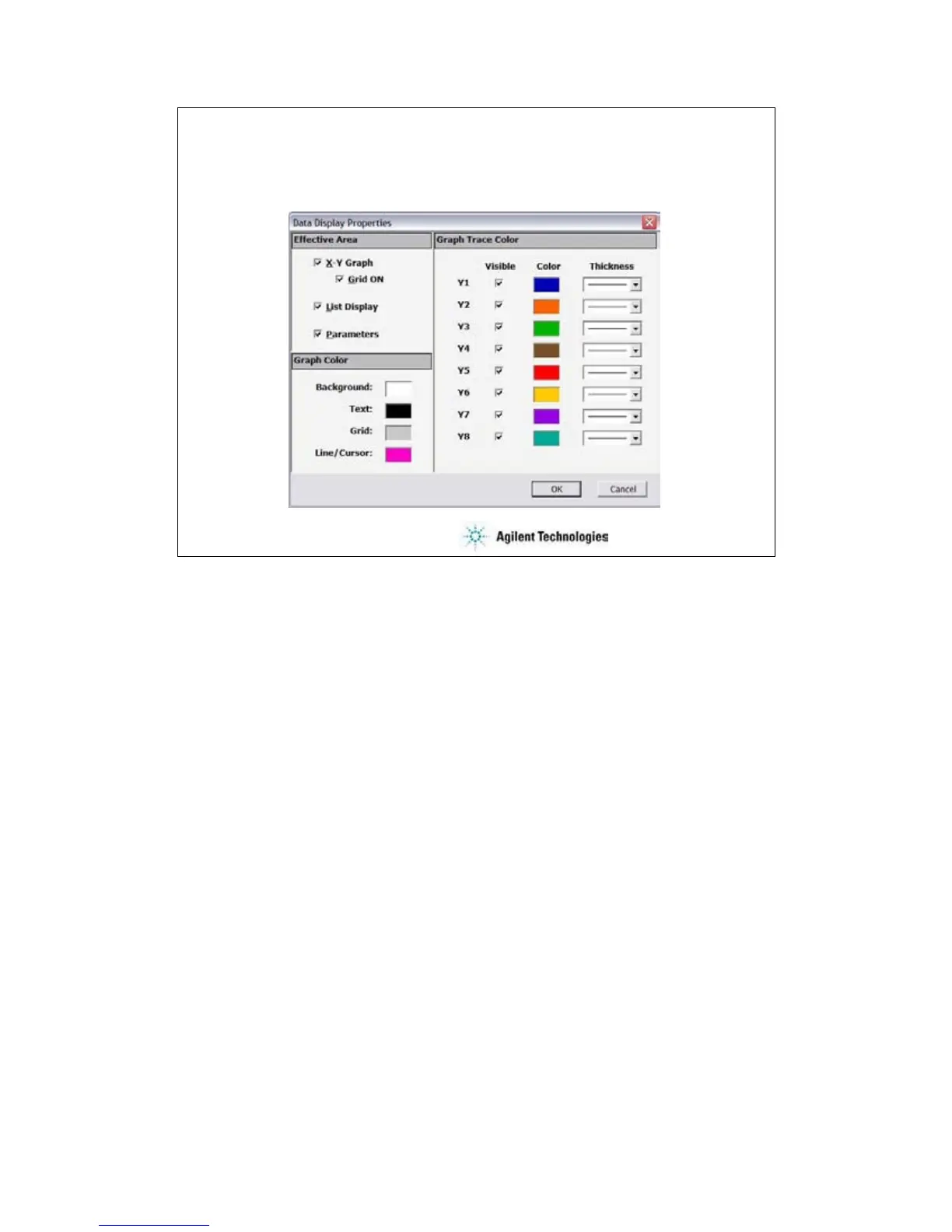

The Data Display Properties window is used to set the default setting of the Data Display window.
This window is opened by selecting the Data Display > Default Data Display Properties... menu of
the main screen.
The Effective Area is used to select the area effective when the Data Display window is opened,
and provides the following check box.
•X-Y Graph: Check this box to enable the X-Y Graph area.
•Grid ON: Check this box to display the grid in the X-Y Graph.
•List Display: Check this box to enable the List Display area.
•Parameters: Check this box to enable the Parameters area.
The Graph Color area is used to set the color map of the Data Display window. You can change
the color of the graph background, text, graph grid, and line. The color palette is opened by
clicking the pattern of the item.
The Graph Trace Color area is used to set visibility, color, and thickness of the data traces Y1 to
Y8 plotted in the graph.
