Agilent Technologies B1500A Self-Paced Training Manual

2-32
To Manage Data Display Window
Data Display > Manage Data Display…

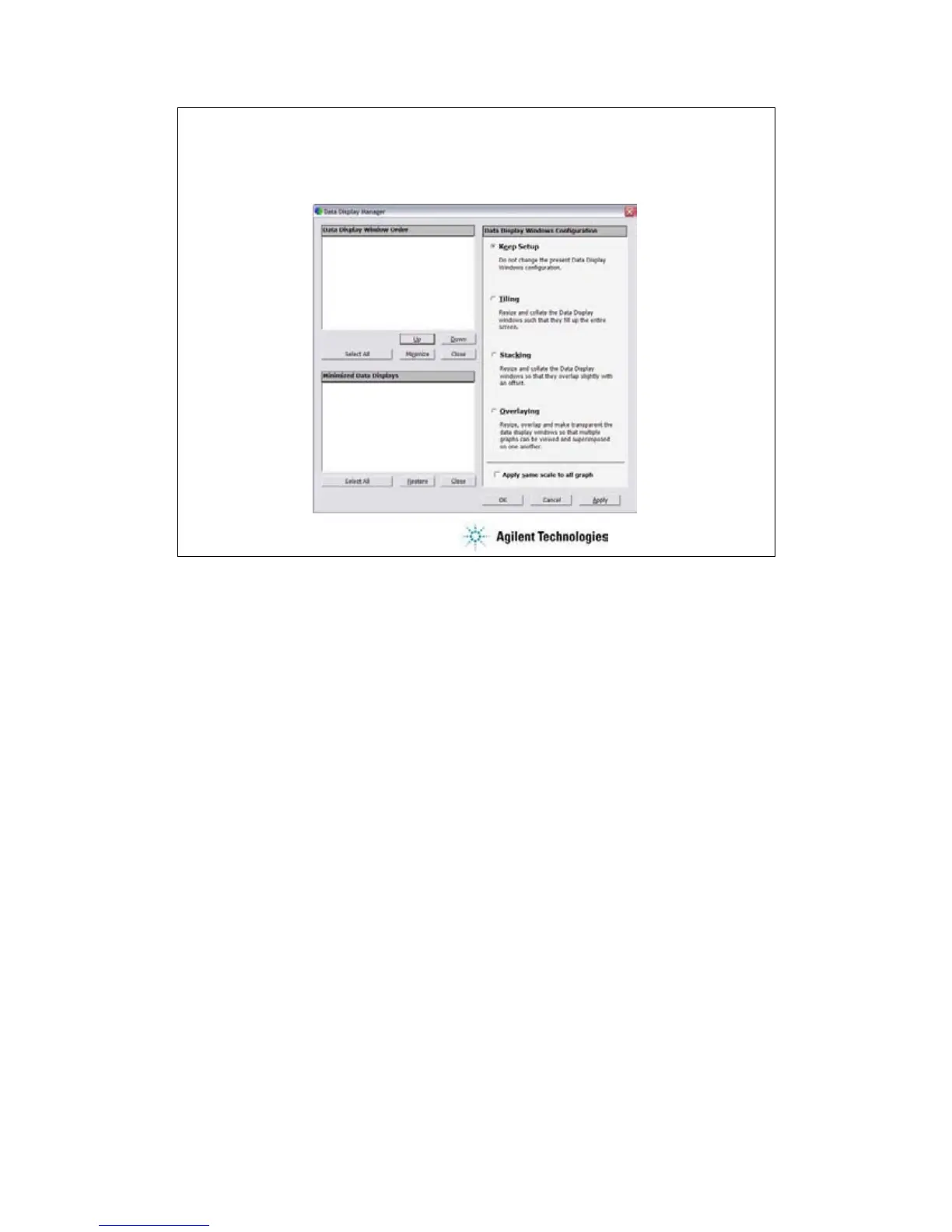

The Data Display Manager is used to control the appearances of the Data Display windows. This
window is opened by selecting the Data Display > Manage Data Display... menu of the main
screen.
The Data Display Window Order area lists the Setup Name of the Data Display windows opened.
The list items from top to bottom correspond to the windows from front to back in the screen
image.
The Minimized Data Displays area lists the Setup Name of the Data Display windows minimized.
The Data Display Window Configuration area provides the following radio buttons and a check
box to change the appearances of the Data Display windows. All functions are available for the
opened windows. See following slides for the display examples.
•Keep Setup: Keeps the present configuration of the Data Display windows.
•Tiling: Resize and collate the data display windows such that they fill up the entire screen.
•Stacking: Resize and collate the data display windows so that they overlap slightly with an offset.
•Overlaying: Resize, overlap, and make transparent the data display windows so that multiple
graphs can be viewed and superimposed on one another.
The following check box must be checked to apply the same graph scale to all graphs.
•Apply same scale to all graph
