Agilent Technologies B1500A Self-Paced Training Manual

1-8

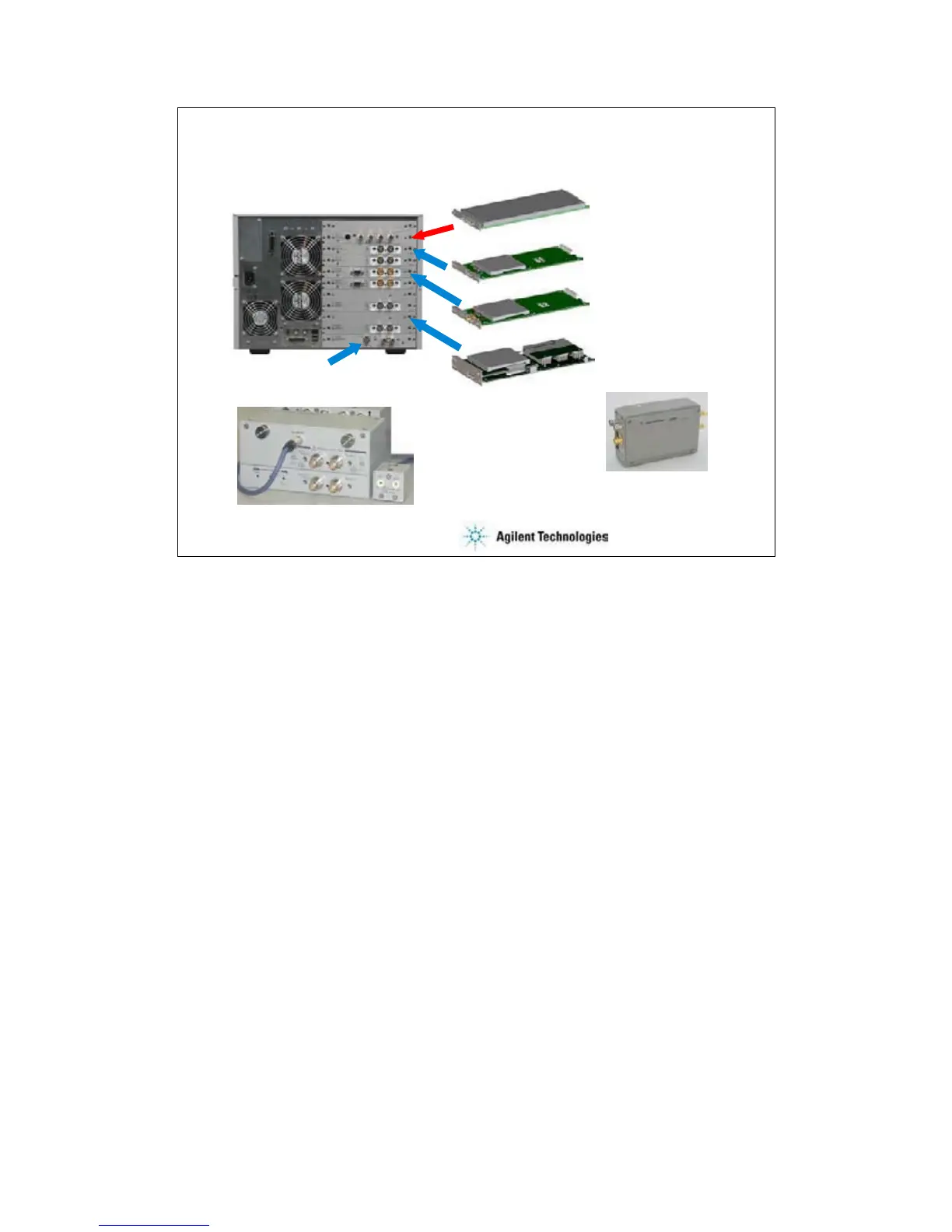

Modular Mainframe
10 module slots
B1510A HPSMU
GNDU: 4.2 A
N1301A-100 SCUU
N1301A-200 GSWU
E5288A ASU
B1517A HRSMU
B1511A MPSMU
B1520A CMU
The following modules and accessories are available for the B1500A:
•B1520A CMU: 1 kHz to 5 MHz CV capability (1 slot)
•B1511A MPSMU: 100 mA/100 V force capability, 10 fA/0.5 mV measurement resolution (1 slot)
•B1517A HRSMU: 100 mA/100 V force capability, 1 fA/0.5 mV measurement resolution (1 slot)
•B1510A HPSMU: 1 A/200 V force capability, 10 fA/2 mV measurement resolution (2 slots)
•N1301A-100/102: SMU CMU unify unit (SCUU) & cable assembly
•N1301A-200/201/202: Guard switch unit (GSWU) & cable assembly
•E5288A ASU: 0.1 fA/0.5 mV measurement resolution with support for IV/CV switching
The ASU (Atto sense/switch unit) can be used with the HRSMU calibrated with it.
The SCUU can be used with the CMU (slot N), SMU (slot N-1), and SMU (slot N-2).
The GSWU can be used with the SCUU.
