Setup example
Assign to external variables…
This example makes the mapping table between the test setup internal parameters and the
analysis parameters.
•Define VTH, GM_MAX, VG, ID, and GM as the analysis parameters.
•Set these analysis parameters to the display parameters.

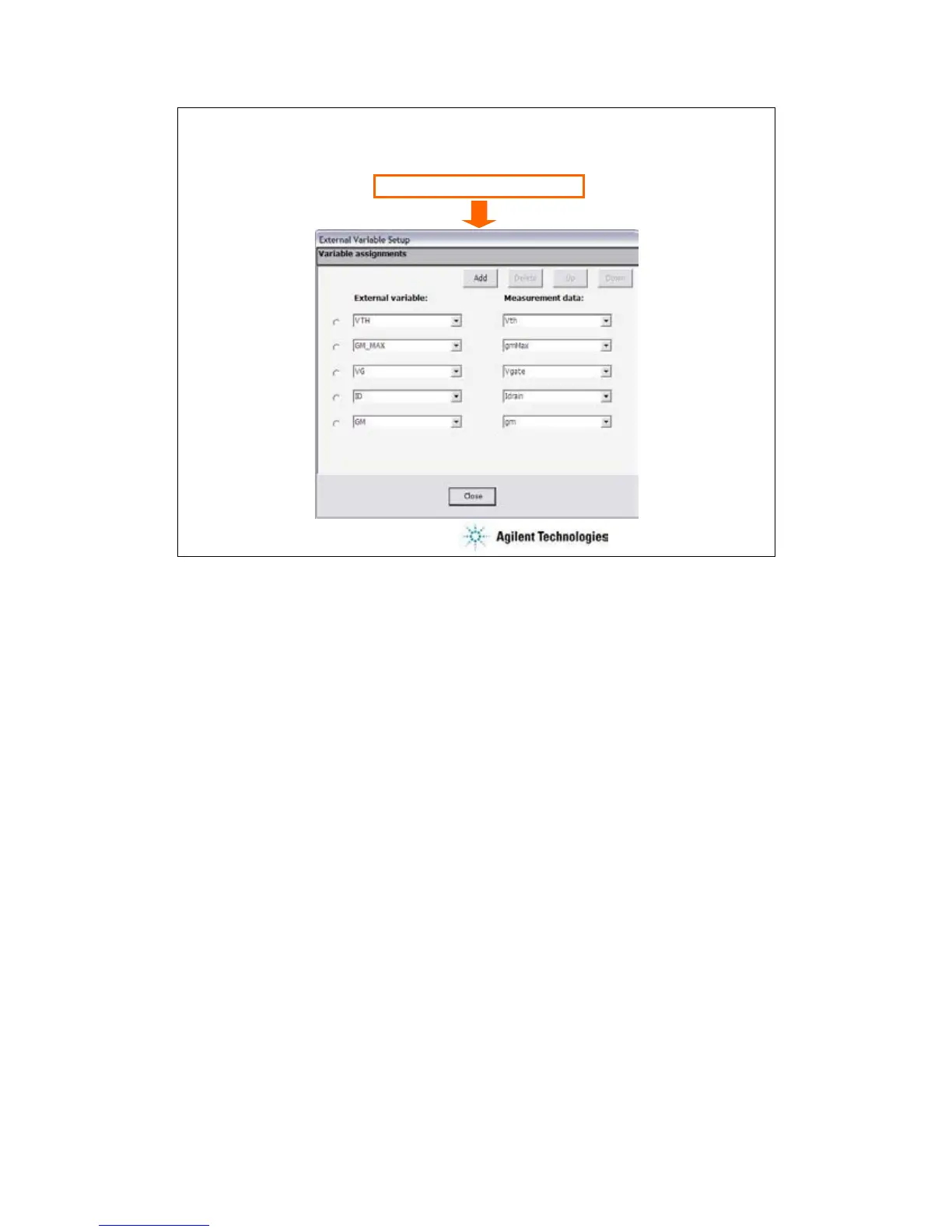

•Open the External Variable Setup dialog box.
•Match VTH with the internal parameter Vth.
•Match GM_MAX with the internal parameter gmMax.
•Match VG with the internal parameter Vgate.
•Match ID with the internal parameter Idrain.
•Match GM with the internal parameter gm.
