Reading test setup internal parameters
Case 1. To use External Variable Setup dialog box
From Classic Test,
Display Setup screen
Assign to external variables…
External Variable Setup
•Local variable
•Device parameter
•Test parameter
•Analysis parameter
Internal variable
From Application Test setup
Assign to external variables…
To read the value of variables used in an Application Test setup or a Classic Test setup, make a
mapping table between the test setup internal variables and the external variables which mean
the local variables, device parameters, test parameters, and analysis parameters defined in the
test contents.

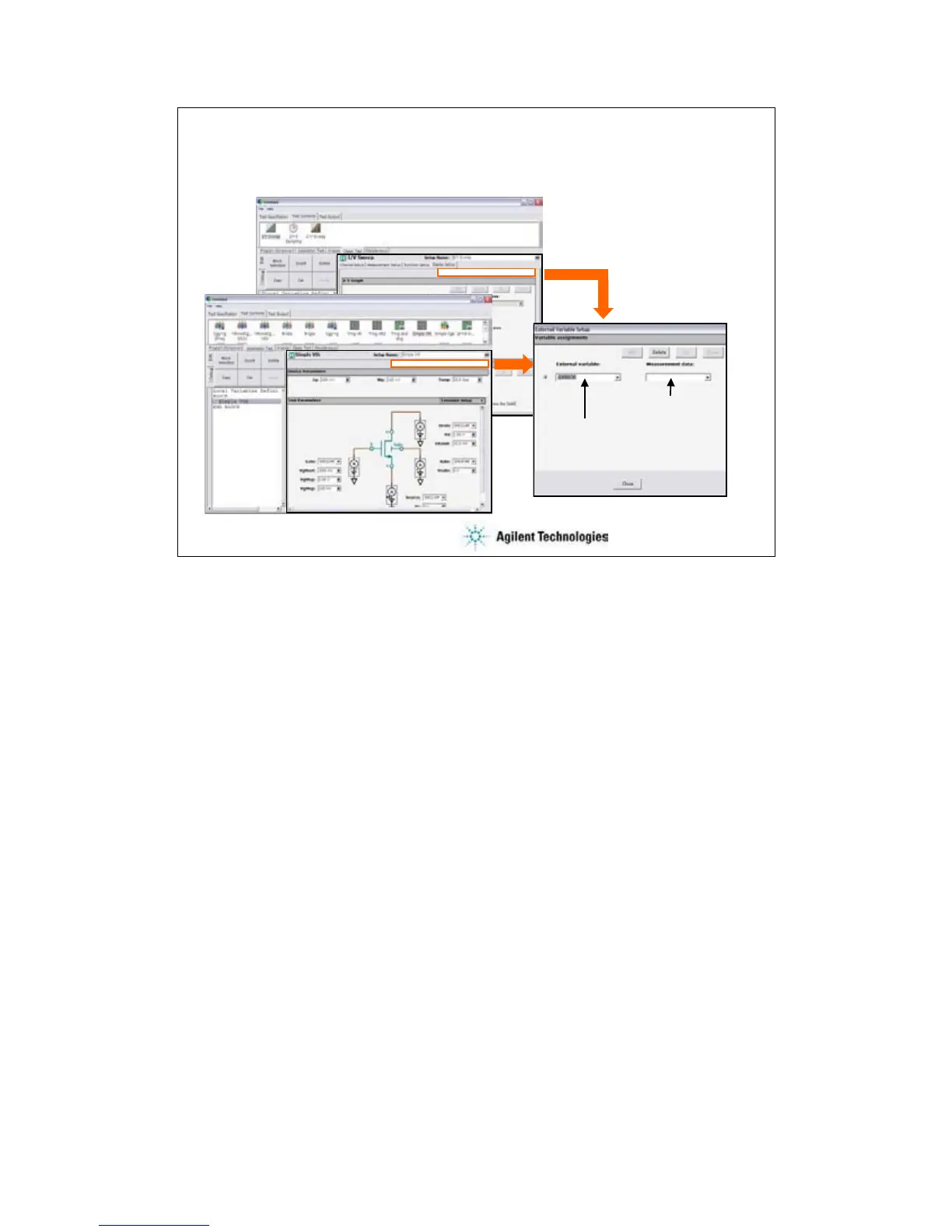

To open the External Variable Setup window from a classic test setup:
•Specify the classic test.
•Click the Display Setup tab.
•Click the Assign to external variables… button.
To open the External Variable Setup window from an application test setup:
•Specify the application test.
•Click the Assign to external variables… button.
