Agilent Technologies B1500A Self-Paced Training Manual

4-26
To Add Data Display
Analysis: Display Data Setup
Data display
Measurement,
data display, and
data save

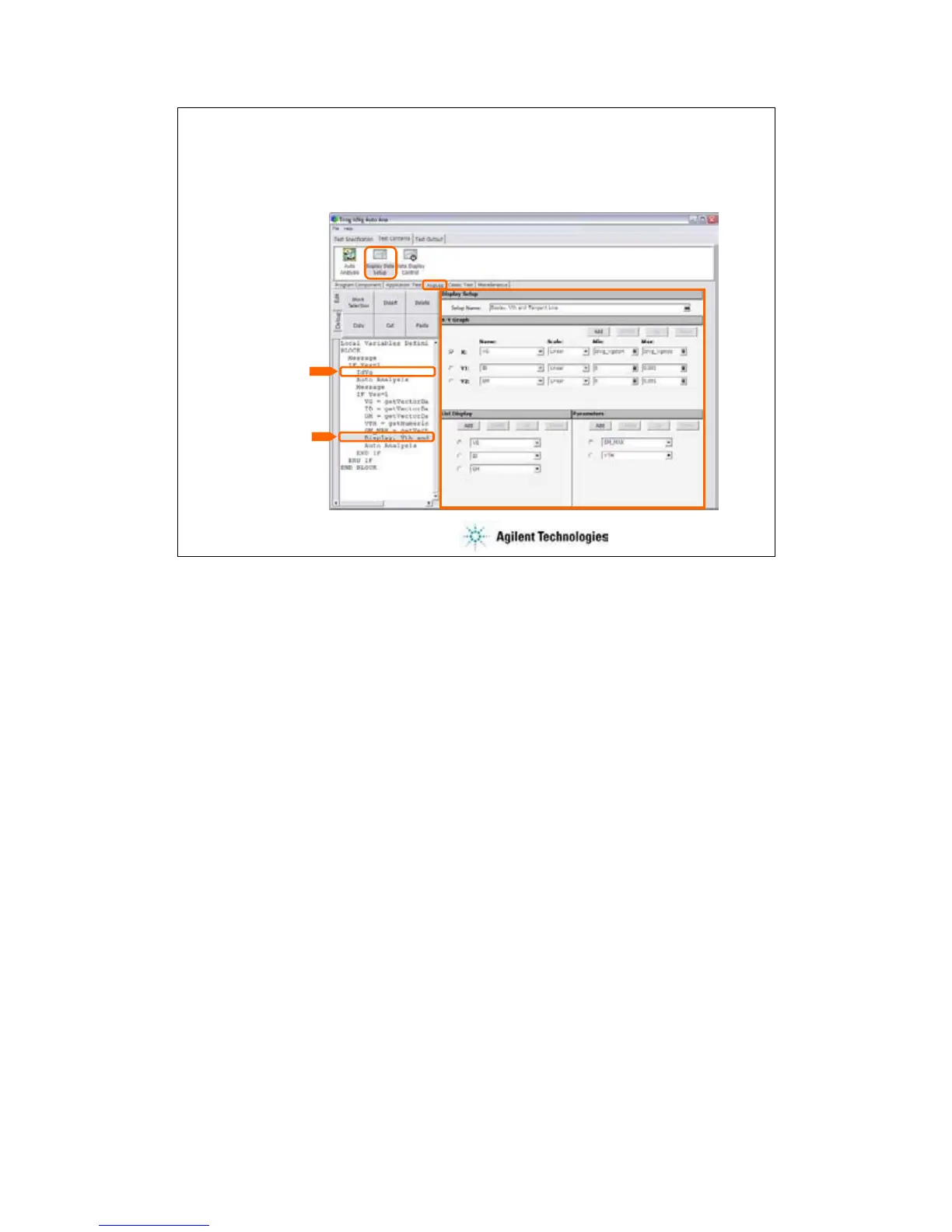

The test setup performs measurement and displays the test result as defined in the channel
setup, measurement setup, and display setup. And the test result data will be stored to the test
record.
In addition to the default test result display, you can make additional data display by using the
Display Data Setup statement. The statement provides the user interface as same as the Display
Setup of the Classic Test or the Test Output of the test definition. The above example displays
the ID-VG/GM-VG curves, GM_MAX and VTH values, and tangent line by using the extra Data
Display and Auto Analysis function. See next slide.
Note:
The additional display data cannot be saved to the data record. However only the last display
data can be saved if the Test Output is not defined in the test definition.
