Agilent Technologies B1500A Self-Paced Training Manual

3-24
To Use Preview Window
The Data Display window provides the File > Print… function to print the graph image. However,
you may want to set the graph title and change the line style. Then use the Preview window.
The Preview window is used to see and print the graph image you modified.

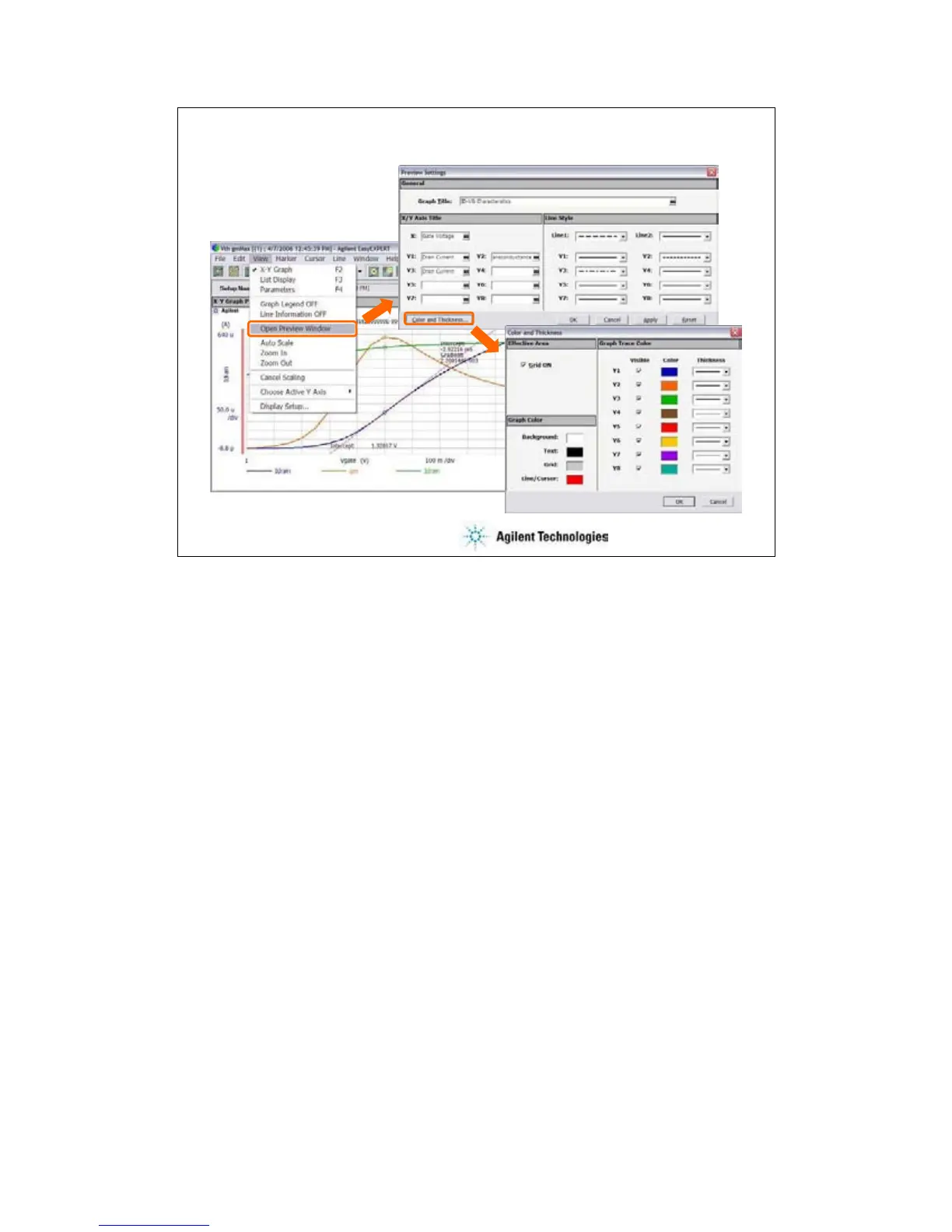

Select the View > Open Preview Window to open the Preview window and the Preview Settings
dialog box. And use the Preview Settings dialog box to set the title of graph, X axis, and Y axis,
and change the line style. To change the color and thickness, use the Color and Thickness dialog
box opened by clicking the Color and Thickness… button.
Clicking OK button in the Preview Settings dialog box applies the modification to the Preview
window and closes the dialog box.
Note:
The graph image in the Preview window cannot be saved.
