Agilent Technologies B1500A Self-Paced Training Manual

5-6
To Set Primary Sweep Source
Measurement Setup
Start
Stop
Step
VAR1

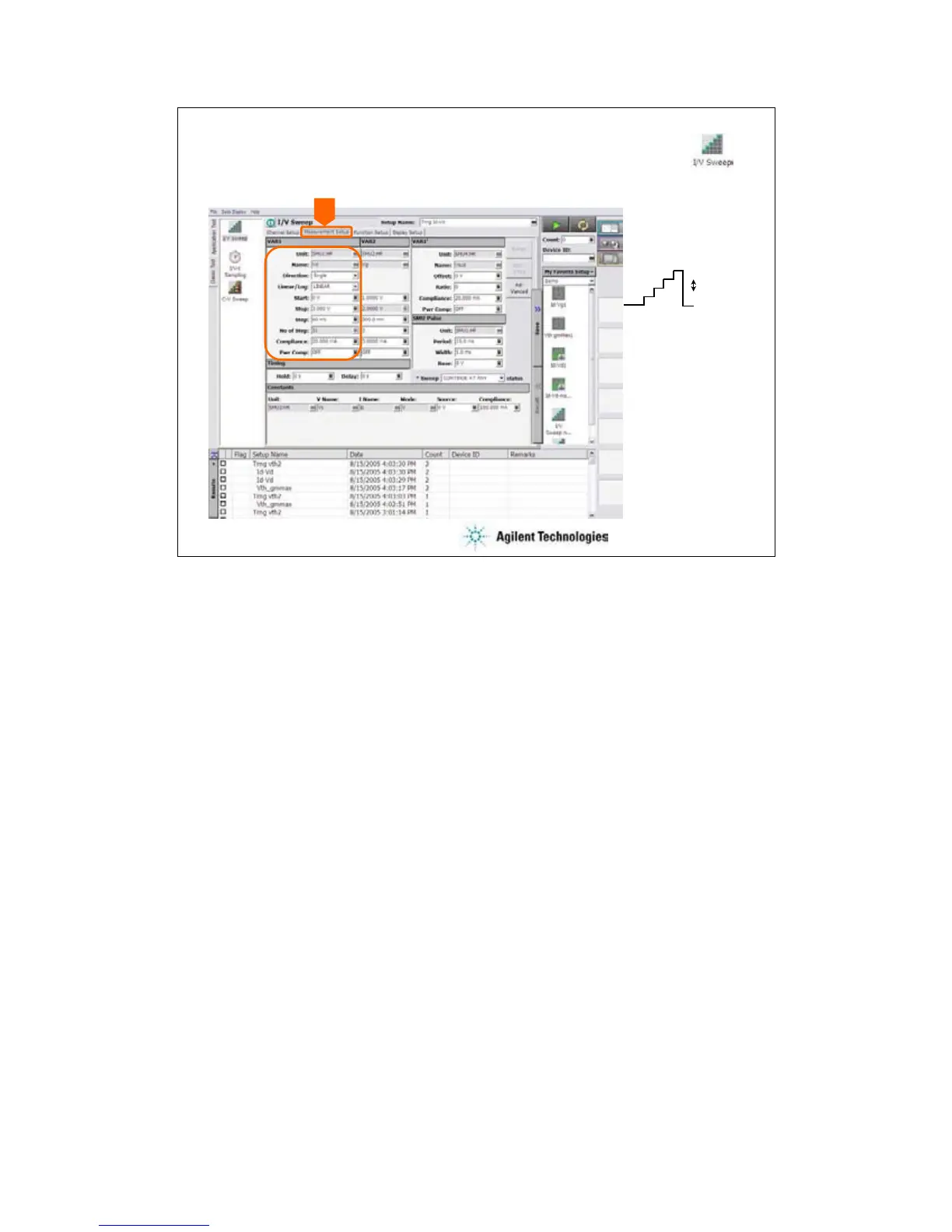

The Measurement Setup tab screen is used to set the source output value and timing parameters.
At the VAR1 area, you set the primary sweep source output.
•Unit: SMU name or number
•Name: Variable name of source output
•Direction: Single (start to stop) or Double (start to stop to start)
•Linear/Log: Linear sweep or Log sweep
•Start: Source output start value
•Stop: Source output stop value
•Step: Source output incremental step value
•No of Step: Number of sweep steps
•Compliance: SMU compliance value
•Pwr Comp: SMU power compliance value
