6-15

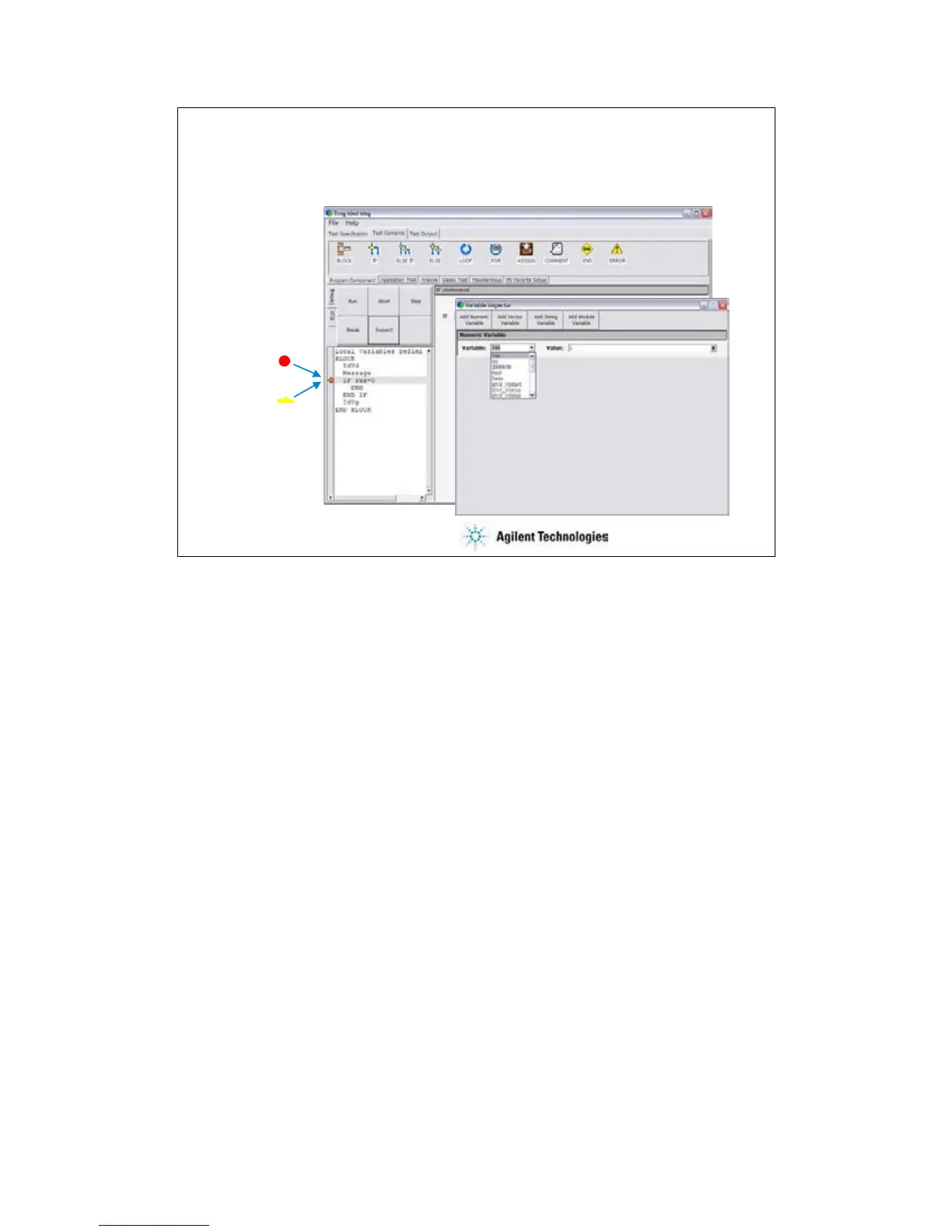

Monitoring Variable Values
Debug: Inspect button
Break point
Paused point
The Variable Inspector is displayed by clicking the Inspect button after the program is paused, and
is used to monitor or change the value of the device parameters, test parameters, analysis
parameters, local variables, or system variables. For the vector variables, only data monitor is
available. The Variable Inspector provides the following buttons to add the variable monitor area.
• Add Numeric Variable
• Add Vector Variable
• Add String Variable
• Add Module Variable
The following functions are available for the menu displayed by clicking the banner of the variable
monitor area.
•Up: This button shifts the variable monitor area upward.
•Down: This button shifts the variable monitor area downward.
•Remove: This button deletes the variable monitor area.
