To Control B2200 Switching Matrix

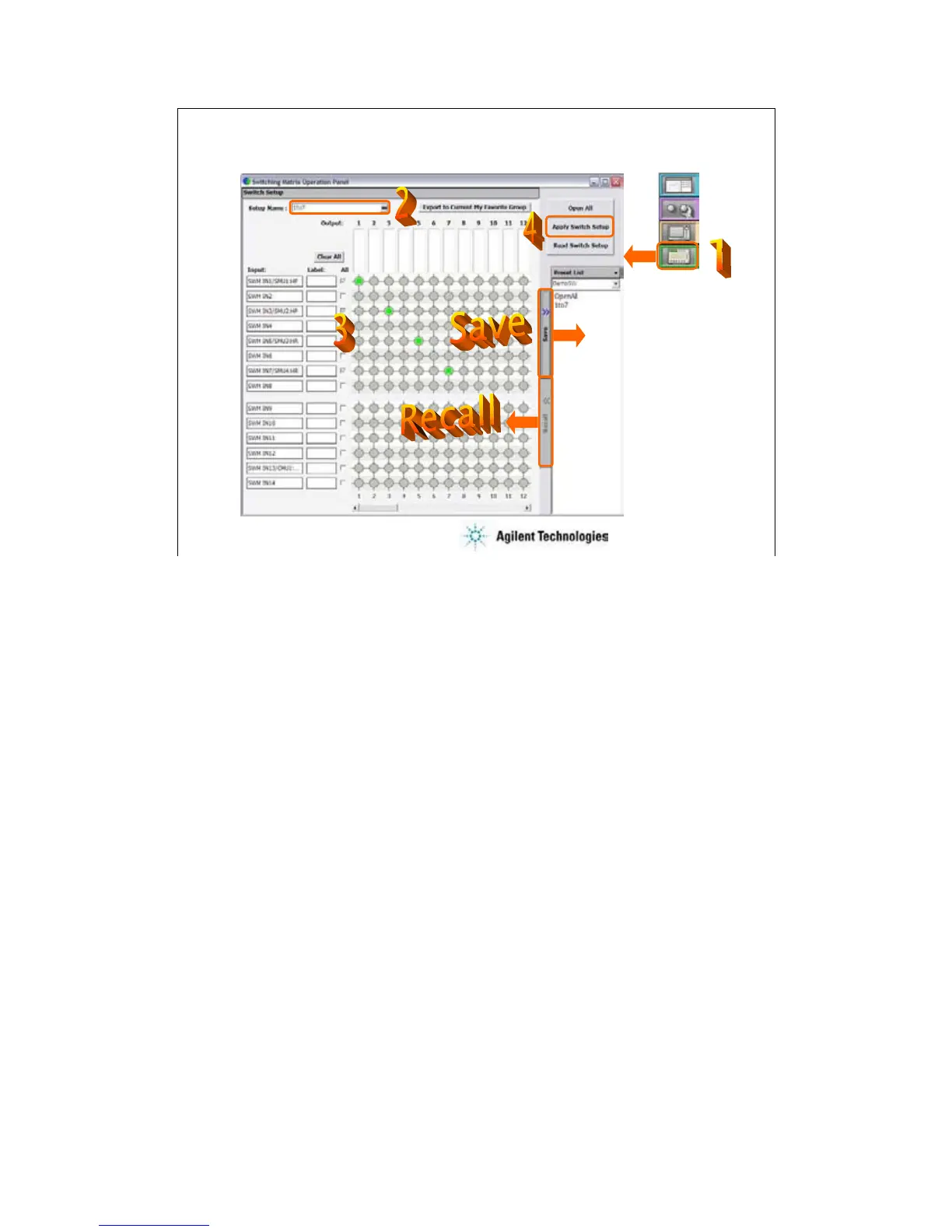

Step 1: Click Switching Matrix button to open the Switching Matrix Operation Panel.
Step 2: Enter the switch setup name.
Step 3: Define the switch setup by using the matrix on the operation panel window. Label can be
set to input ports and output channels.
Step 4: Click the Apply Switch Setup button to send the switch setup to the B2200 switching
matrix.
Note:
Before clicking this button, connect the B2200 to the B1500 via GPIB, and set the configuration.
To set the configuration, see Module 8.
The switch setups you create or modify MUST be saved in a preset group.
To save the setup, click the Save button.
To recall the setup, click the Recall button.
You can organize the setups by using the Preset List button.
To select the available preset group, use the field below the Preset List button. In the above
example, the DemoSW group is selected and listed in the Preset List list.
To rename, duplicate, or delete the setups, and to add, rename, duplicate, or delete the preset
group, use the function of the Preset List button menu or the Organize Preset Group dialog box
shown in the next page.
