98 Chapter 4
Basic Digital Operation
Arbitrary (ARB) Waveform File Headers
9. Return to the Header Utilities menu: Press Return > Return > Header Utilities.
Notice that the Current Inst. Settings column now reflects the changes made in steps 4 through
8 to the current signal generator setup, but that the saved header values have not changed (as shown in
Figure 4-4 below).

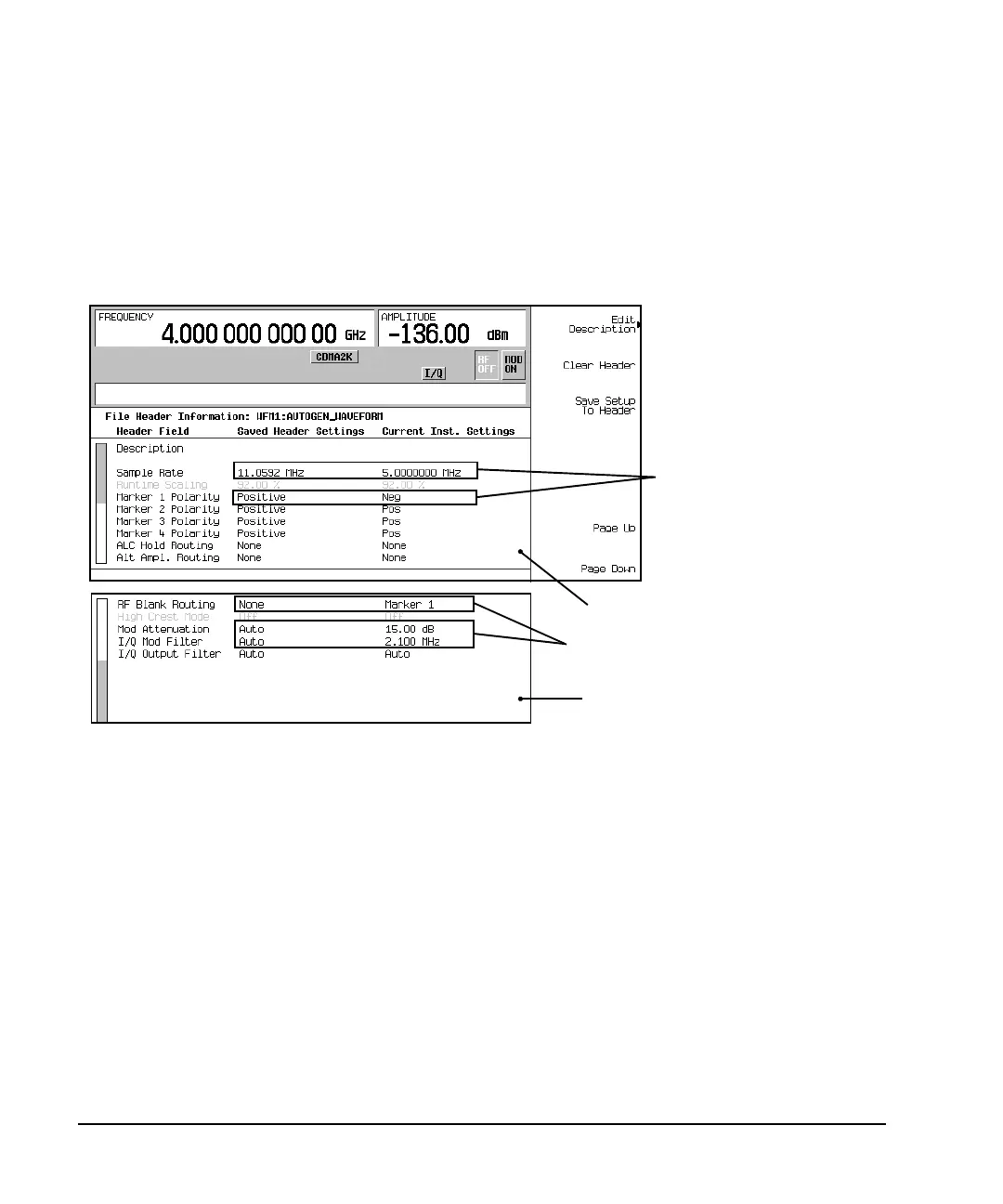

Figure 4-4 Differing Values between Header and Current Setting Columns
10. Save the current settings to the file header: Press the
Save Setup To Header softkey.
The settings from the Current Inst. Settings column now appear in the Saved Header
Settings column. The file header has been modified and the current instrument settings saved. This is
shown in Figure 4-5.
Page 2
Page 1
Values Differ between the
two Columns
Values Differ between the
two Columns
To Next Page
