Agilent Technologies E4428C User Manual

170 Chapter 4
Basic Digital Operation
Using Customized Burst Shape Curves

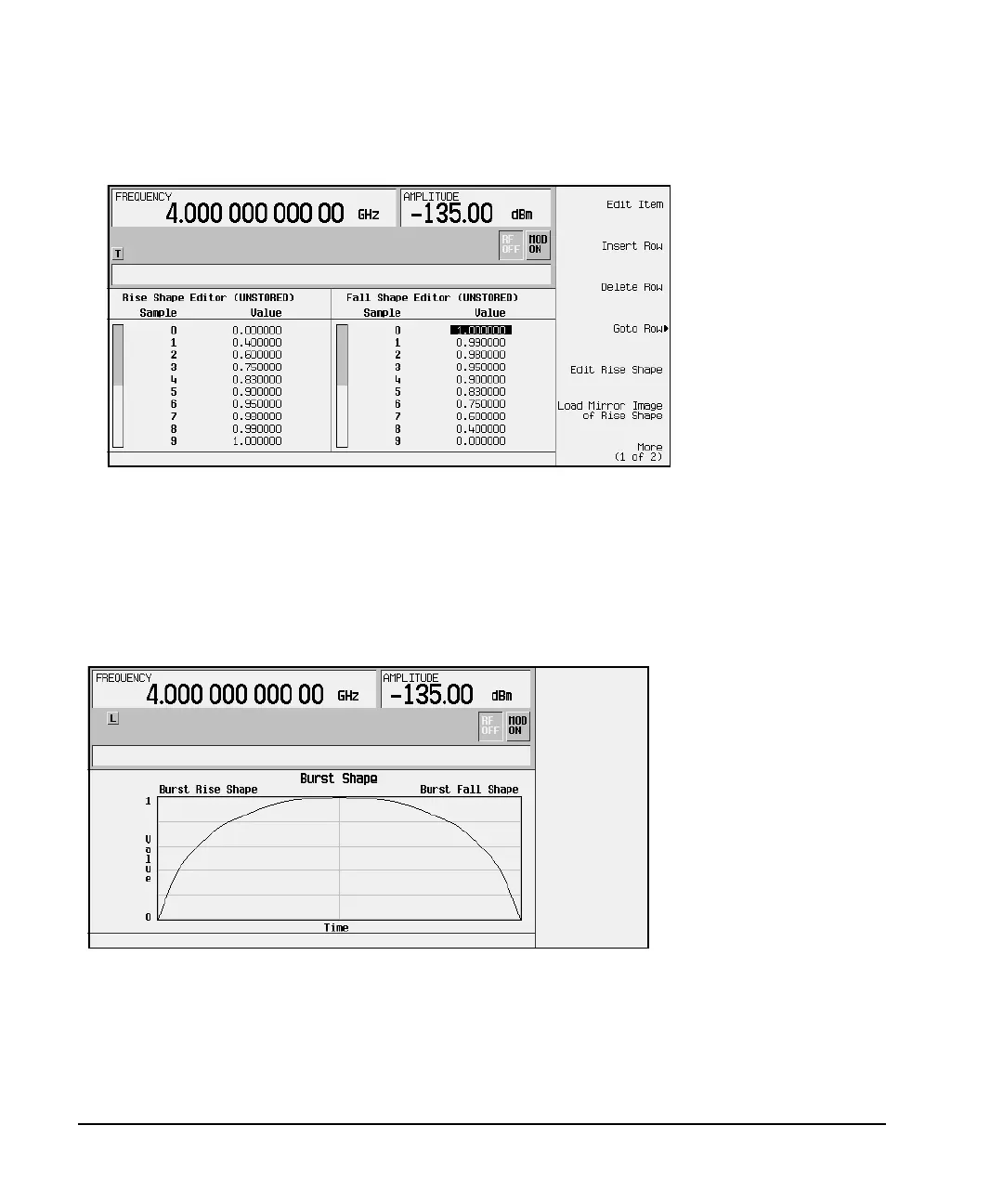

Figure 4-27
Display the Burst Shape
Press
More (1 of 2) > Display Burst Shape.
This displays a graphical representation of the waveform’s rise and fall characteristics, as shown in Figure
4-28.
Figure 4-28
To return the burst to the default conditions, press the following keys:
Return > Return > Confirm Exit From Table Without Saving > Restore Default Burst Shape.
