176
Chapter 4
Basic Digita
l Operation
Using Finite Impulse Response (FI
R) Filters
Figu
re
4
-31
2.
Press
Return.
3.
Press
Displa
y Impulse Respon
se
.

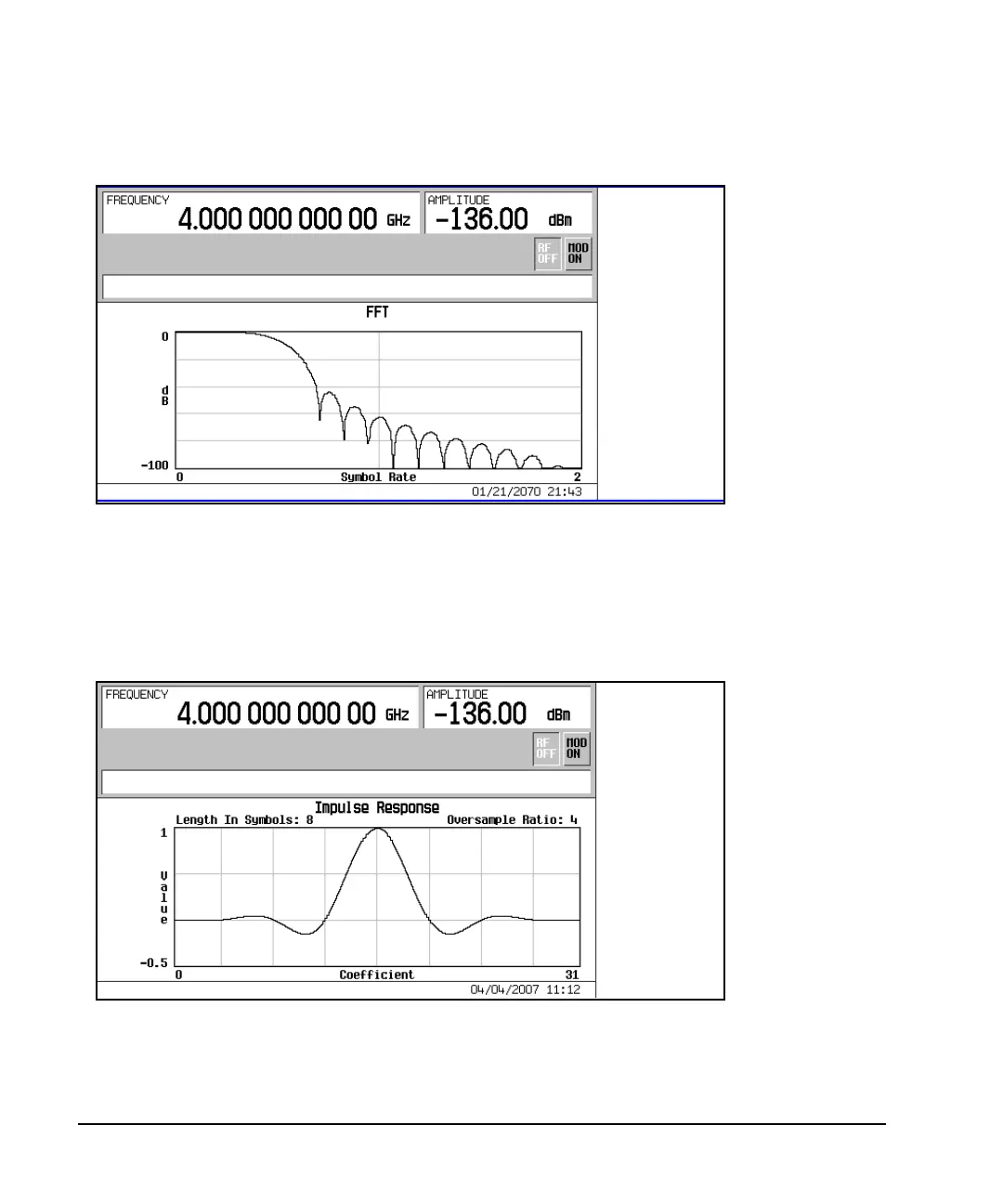

Refer to
Fi
gure 4-32
.
Figu
re
4
-32
4.
Press
Return
to retu
rn to the menu keys.
