Agilent Technologies E4428C User Manual

494 Chapter 16
W-CDMA Uplink Digital Modulation for Receiver Test
Setting Up a Multiple PRACH Signal

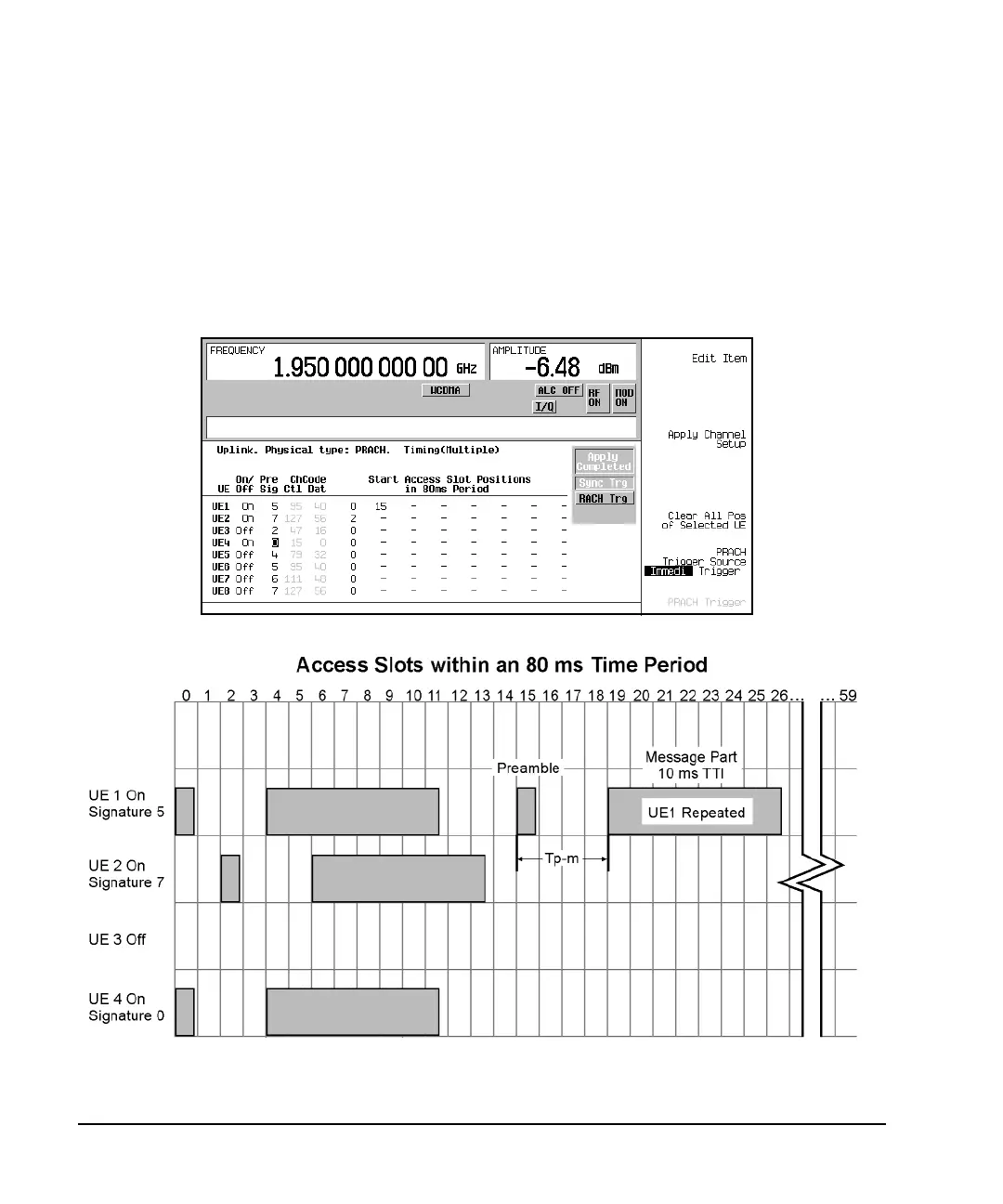

Figure 16-32 shows both the completed timing setup display and a graphical representation of the setup by
access slot when this procedure was used to configure the multiple PRACH signal. Figure 16-33 on
page 496 shows the output of the ESG, with the same configuration, on the Agilent E4440A PSA Spectrum
Analyzer.
Figure 16-32 Multiple PRACH Timing Setup
Timing Settings
