W-CDMA Downlink Digital Modulation for Receiver Test
Configuring for Transmit Diversity and BERT
Figure 17-15 Multiple ESG Synchronization Trigger Signal Selected
4. Press
Return > More (2 of 2) or just press Mode Setup to return to the first-level W-CDMA softkey menu.
Configuring the Signal Parameters
1. Press
Link Control > 5 > Enter.
This positions the cursor on the DPCH.
2. Press
PhyCH Setup > Ref Measure Setup > 64 kbps.
This selects the 64 kbps reference measurement channel (RMC) as described in the stated 3GPP TS
standard and configures two dedicated channels (DCH, transport channels). If desired, you can adjust the
TFCI bits for the DPCH and the secondary scramble code. Notice that Ref 64 is showing as the data
type for DPCH one. This is demonstrated in Figure 17-16.

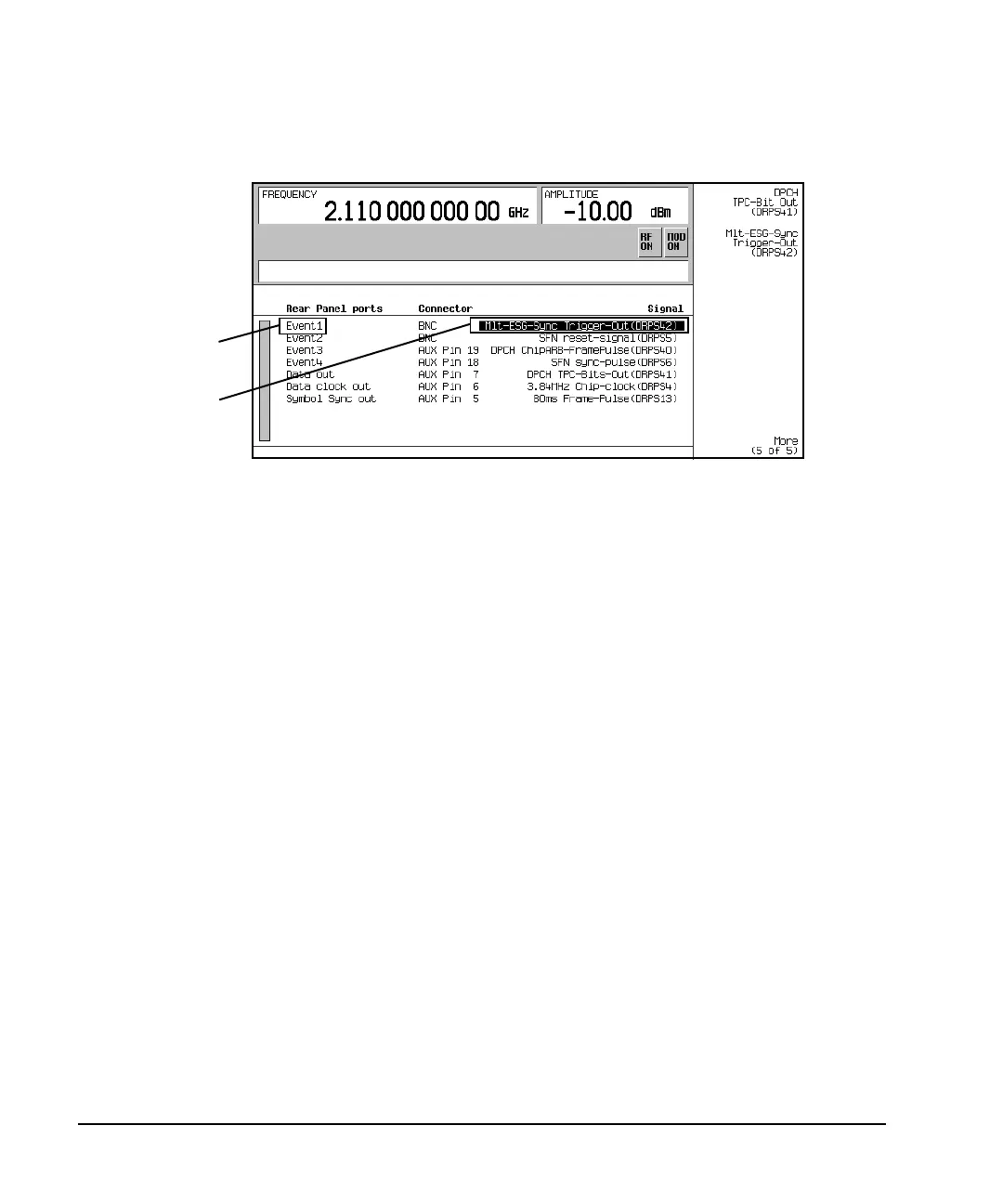

Multiple ESG Sync
Trigger Selected
Output Connector
To Next Page
