Agilent Technologies E4428C User Manual

Chapter 17 611
W-CDMA Downlink Digital Modulation for Receiver Test
Setting Up for a Compressed Mode Signal
Connection Diagram for Measuring the DPCH Symbol Power
Refer to Figure 17-23 and connect the cables for the ESG and PSA (spectrum analyzer).

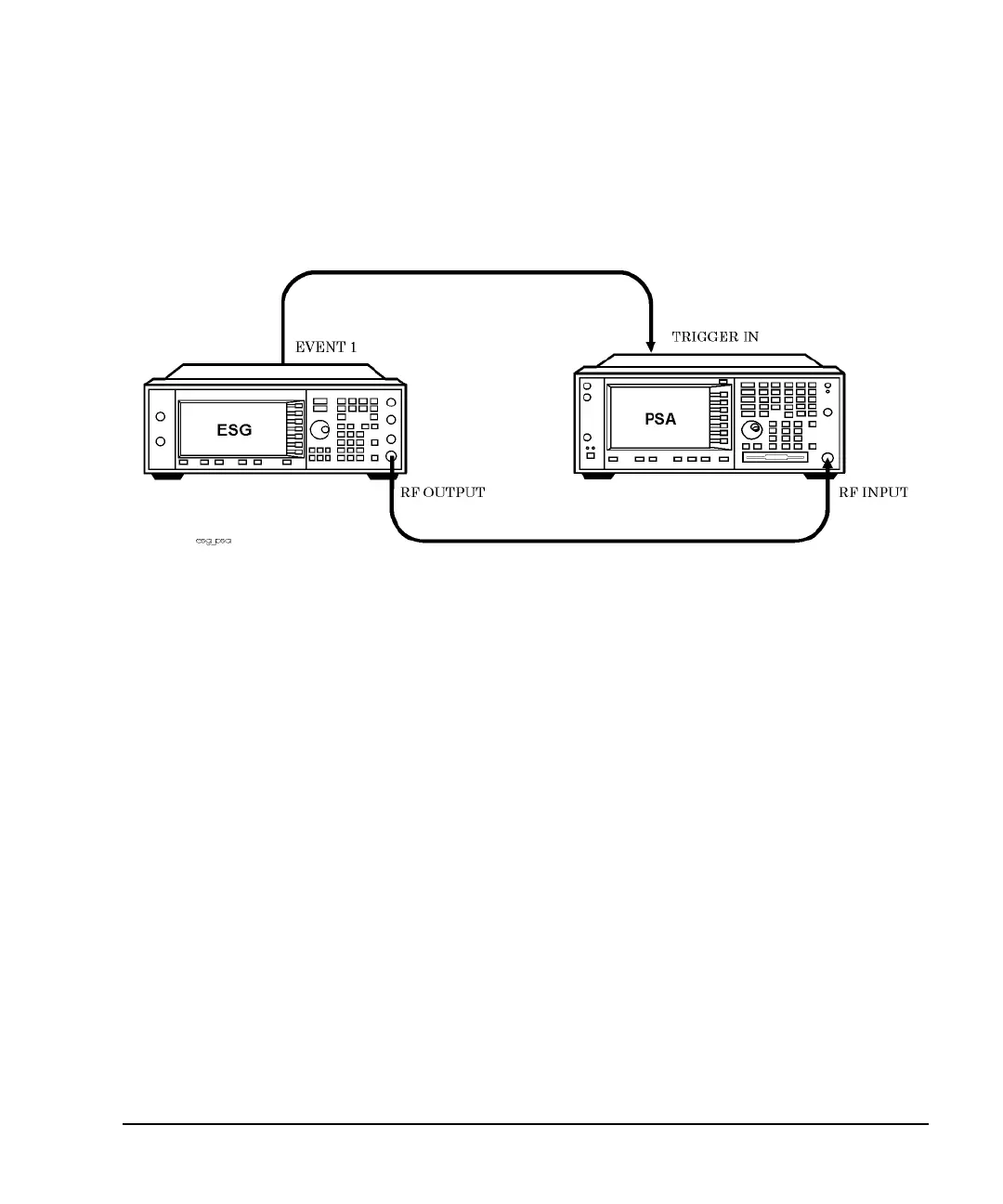

Figure 17-23 Compressed Mode Setup for a Symbol Power Measurement
Connection Diagram for BERT Measurements
Refer to Figure 17-24 and connect the cables for the ESG and the UE.
