SMD Tweezers Specifications
U1731C/U1732C/U1733C User’s Guide 87
SMD Tweezers Specifications
The Agilent U1782B is a tweezers to be used with the U1700
Series Handheld LCR Meters. This tweezers is useful when
measuring SMD- type components. Plug in the base of the
tweezers to the LCR meter's + (HI- SENSE), – (LO- SENSE)
and GUARD ends. Ensure that the orientation of the base
matches the polarity of the LCR meter.
It is recommended to measure the SMD components length
as well as the maximum opening of the tweezers. The length
of the tweezers is approximately 815 mm (32.08 inches) (see
Figure 4- 1).

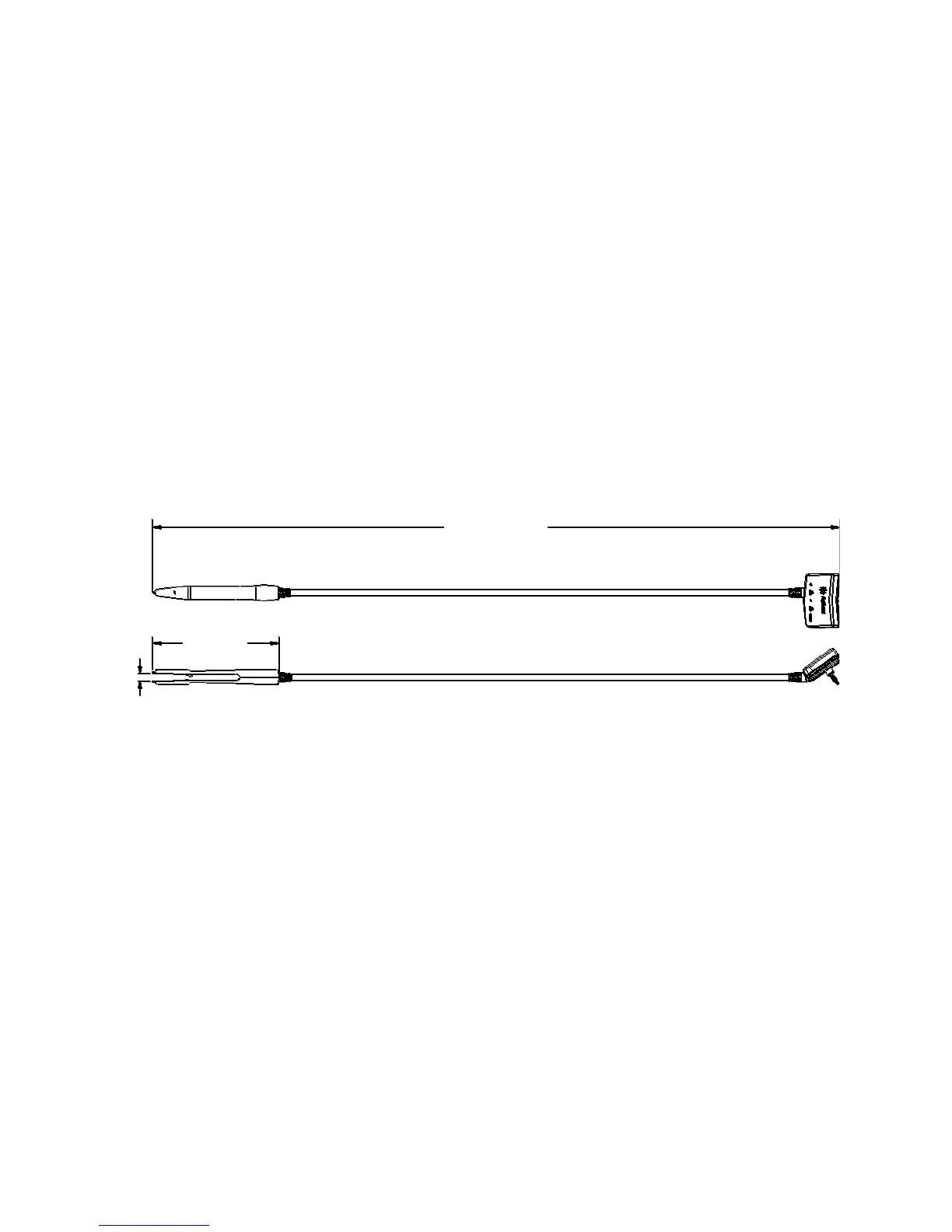

Figure 4-1 U1782B SMD tweezers
815 ± 20 mm
150 mm
8.4 mm
SMD tweezers base
