Agilent Technologies U1731C

1 Introduction
Preparing Your LCR Meter
8 U1731C/U1732C/U1733C User’s Guide
Adjusting the tilt stand
To adjust the LCR meter to a 60° standing position, pull the
tilt- stand outward to its maximum reach.

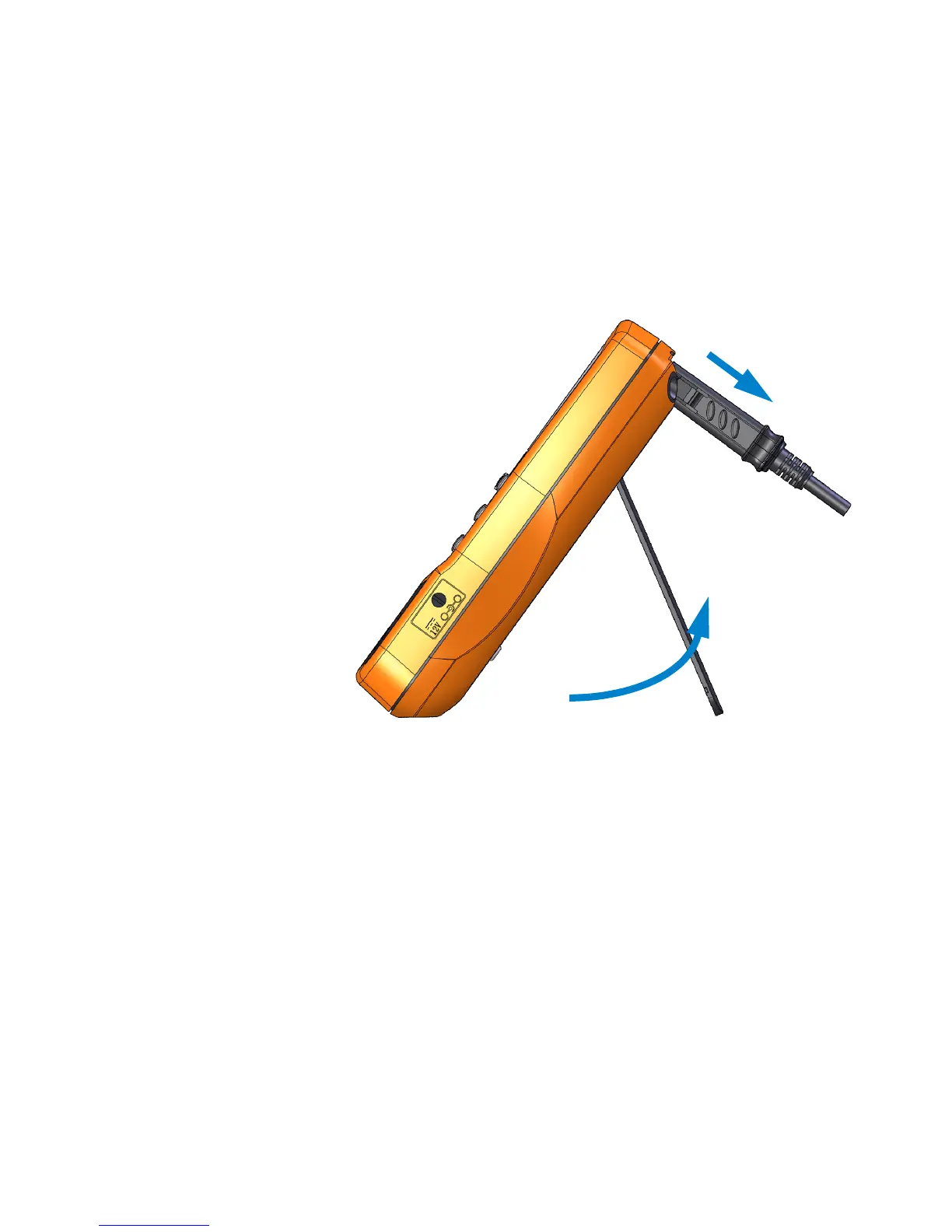

Figure 1-3 Tilt-stand adjustment and IR cable connection
To PC (host)
IR-USB cable
