1 Introduction
Preparing Your LCR Meter
4 U1731C/U1732C/U1733C User’s Guide
1 Open the battery cover. Lift the tilt stand. Loosen the
screw with a suitable Phillips screwdriver and remove the
battery cover as shown in Figure 1- 1.
2 Insert the battery. Observe the proper battery polarity.
The terminal ends of the battery are indicated inside the
battery compartment.
3 Close the battery cover. Place the battery cover back in
its original position and tighten the screw.

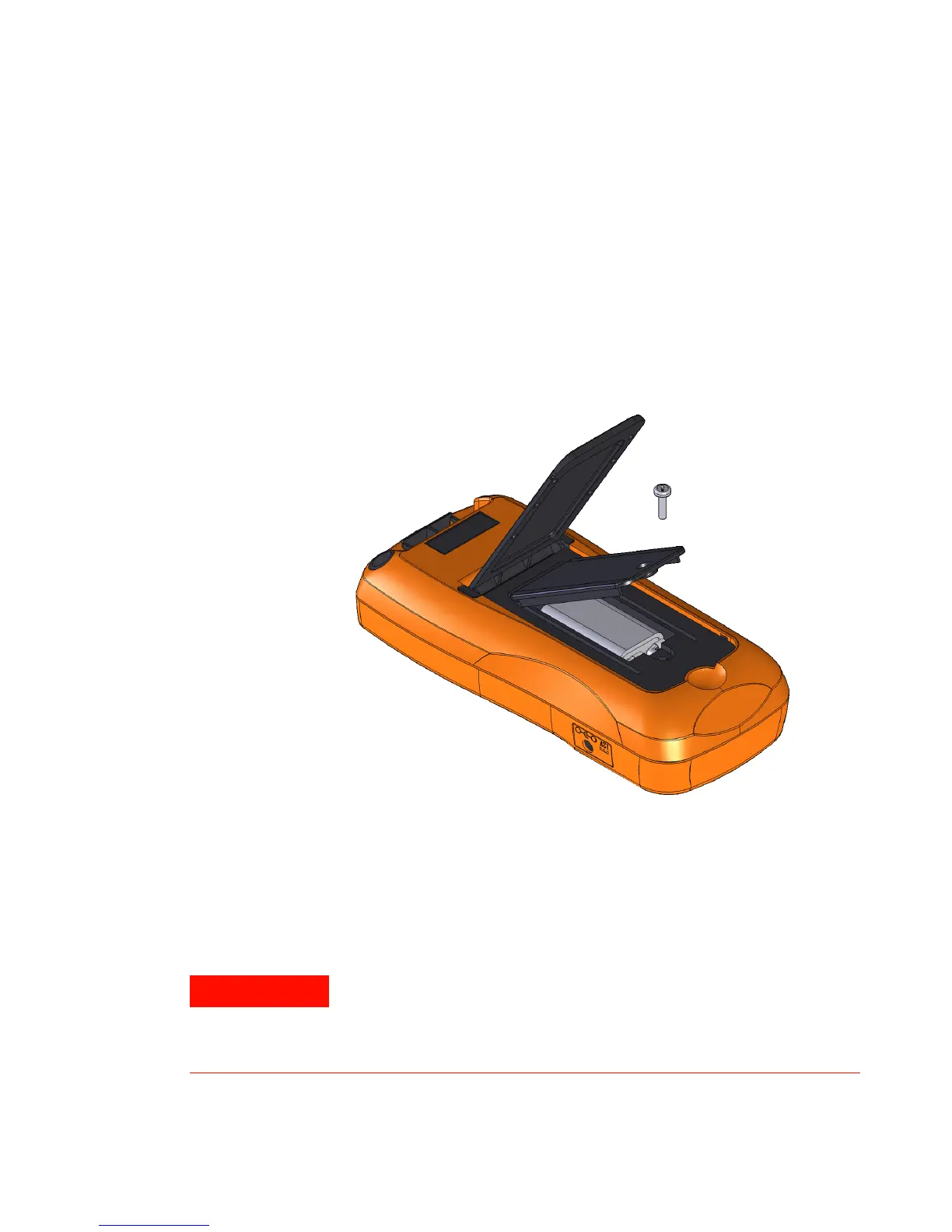

Figure 1-1 Installing the batteries
The battery level indicator in the lower right- hand corner of
the display indicates the relative condition of the battery.
Table 1- 1 describes the various battery levels the indicator
represents.
To avoid false readings, which could lead to possible electric shock
or personal injury, replace the battery as soon as the low battery
indicator appears. Do not discharge the battery by shorting the
battery or reverse the battery polarity.
