Measuring capacitance (C)
Set up your LCR meter to measure capacitance as shown in
Figure 2- 5.
1 Press to power on the LCR meter.
2 Press to select a suitable test frequency, and
i press to enable the auto identification function; or
ii alternatively press to select capacitance
measurement.

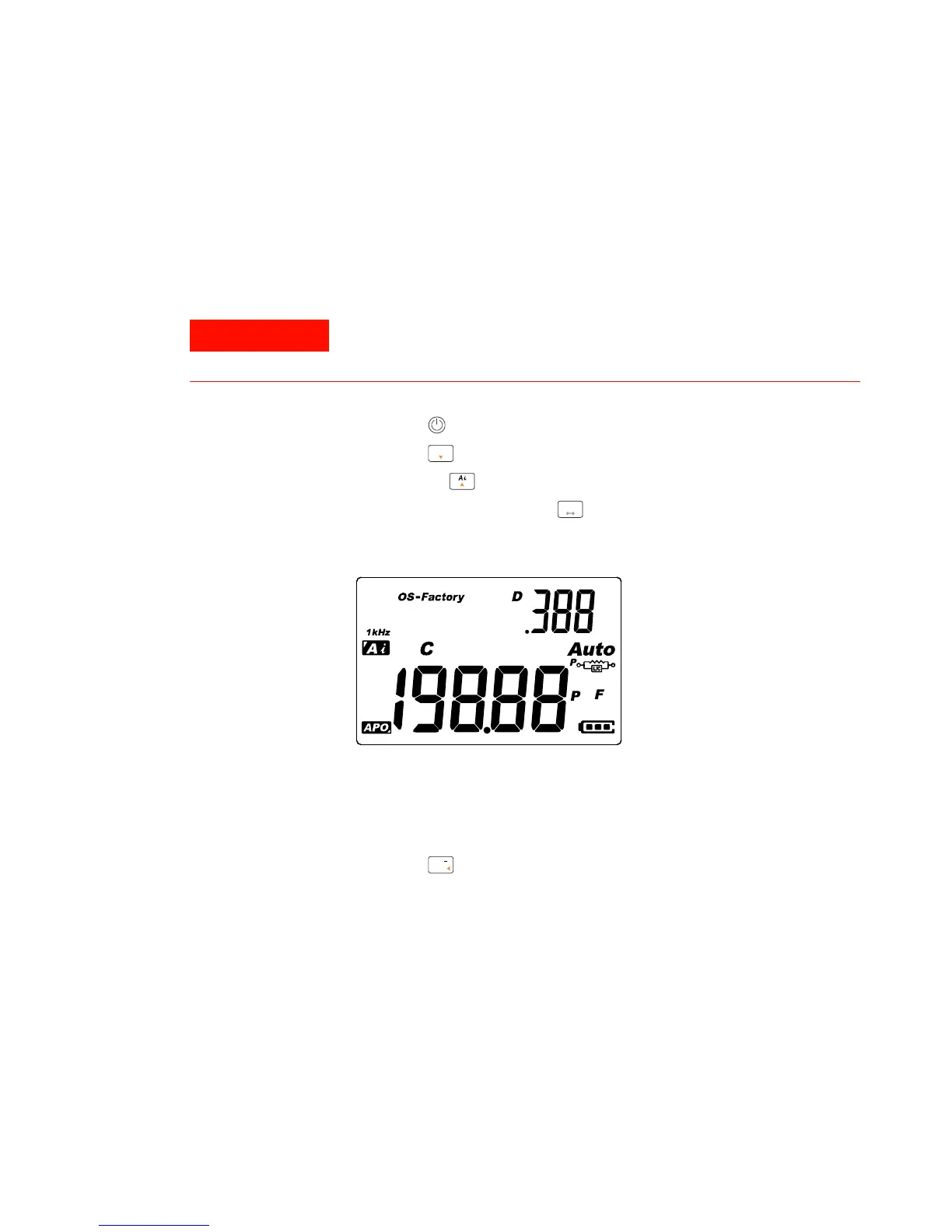

Figure 2-4 Capacitance measurement with D factor
3 Insert a capacitor into the component socket or connect
the test clip to the component leads as required.
4 Press to change the secondary display measurement
(D, Q, or θ).
5 Read the displays.
To avoid electrical hazards, discharge the capacitor to be tested
before measuring.
