1 Introduction
Your LCR Meter in Brief
14 U1731C/U1732C/U1733C User’s Guide
Rear panel
The rear panel parts of your LCR meter are described in
this section. Click the respective “Learn more” pages in
Table 1- 4 for more information on each part.

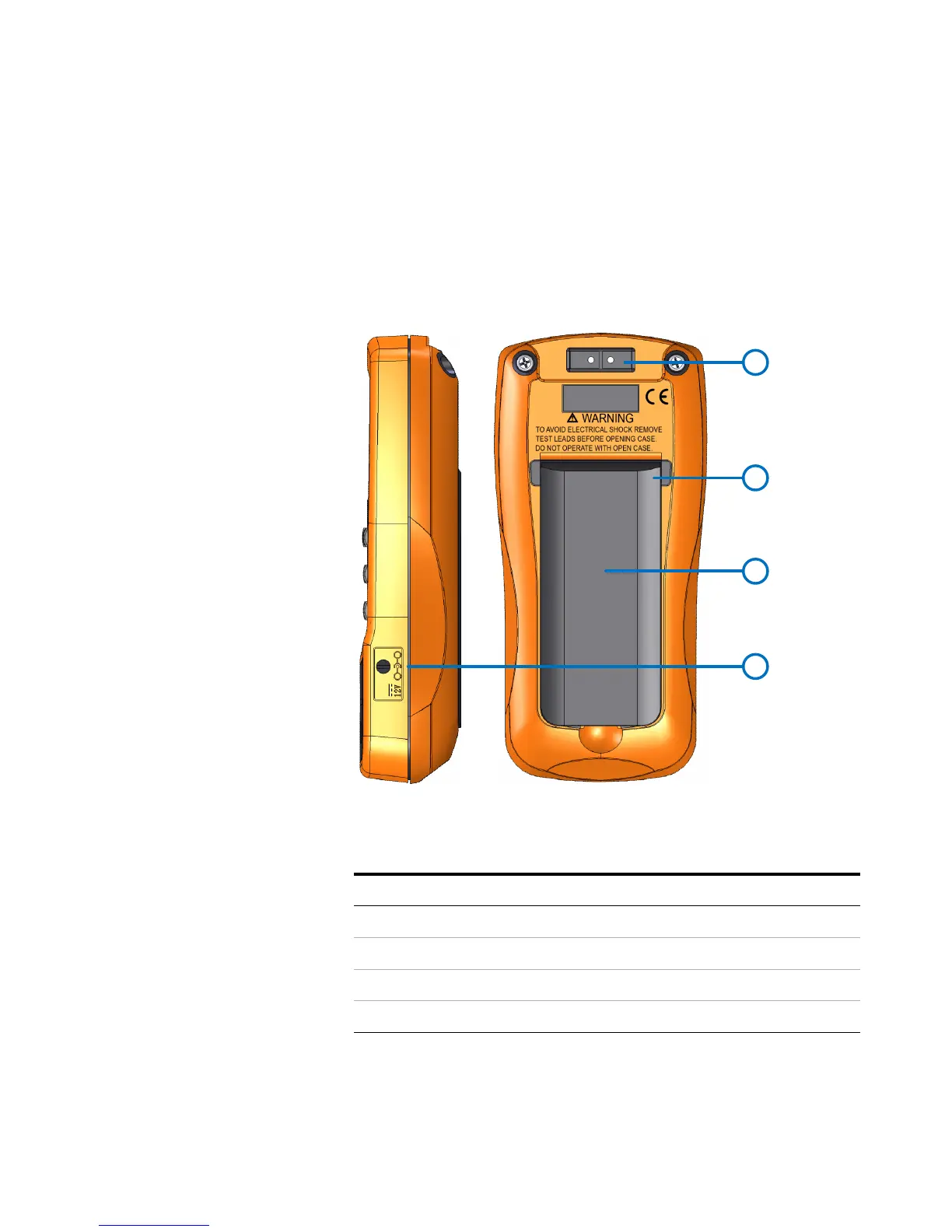

Figure 1-8 Rear panel
Table 1 - 4 Rear panel parts
Legend Description Learn more on:
1 IR communication port page 9
2 Tilt stand page 8
3 Battery cover (lift the tilt stand for access) page 3
4 External power adapter input jack
[1]
[1] The external power adapter input jack requires an input voltage of +12 VDC.
-
