Setup Options 3
Setup Menu Items
U1731C/U1732C/U1733C User’s Guide 59
Changing the power-on secondary parameter and measurement
mode for inductance (L) measurements
Use this Setup item to change the inductance (L)
measurement’s initial secondary parameter — dissipation
factor (D), quality factor (Q), or phase angle (θ) — and
measurement mode — parallel or series.
The inductance (L) measurement will start up using the
selected secondary parameter and measurement mode for
subsequent power cycles.

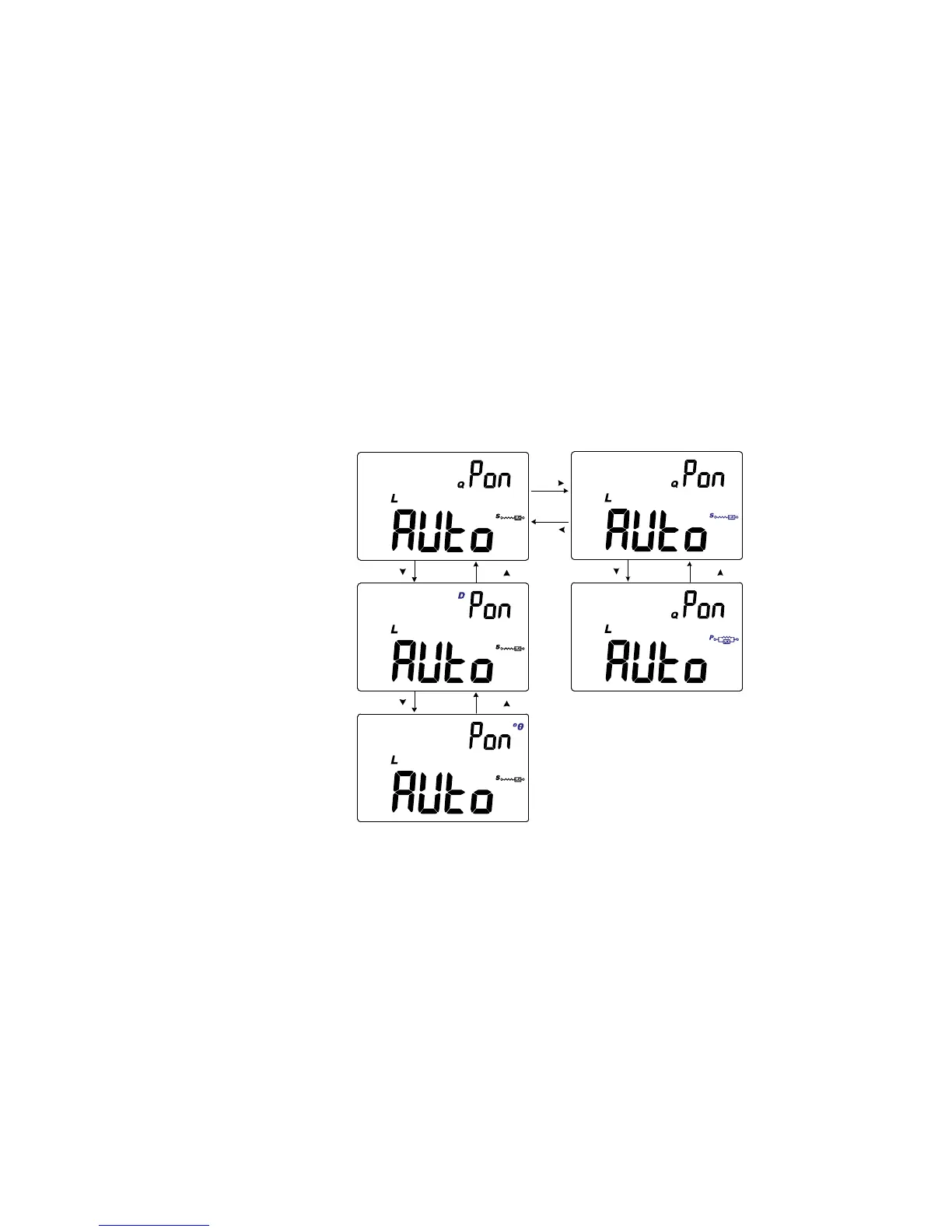

Figure 3-3 Changing the power-on secondary parameter and measure-
ment mode for inductance (L) measurements
Pr e s s
Pr e s s
Pr e s s
Pr e s s
Pr e s s
Pr e s s
Pr e s s
Pr e s s
To Next Page
