Measuring resistance (R)
Set up your LCR meter to measure resistance as shown in
Figure 2- 7.
1 Press to power on the LCR meter.
2 Press to select a suitable test frequency, and
i press to enable the auto identification function; or
ii alternatively press to select resistance
measurement.

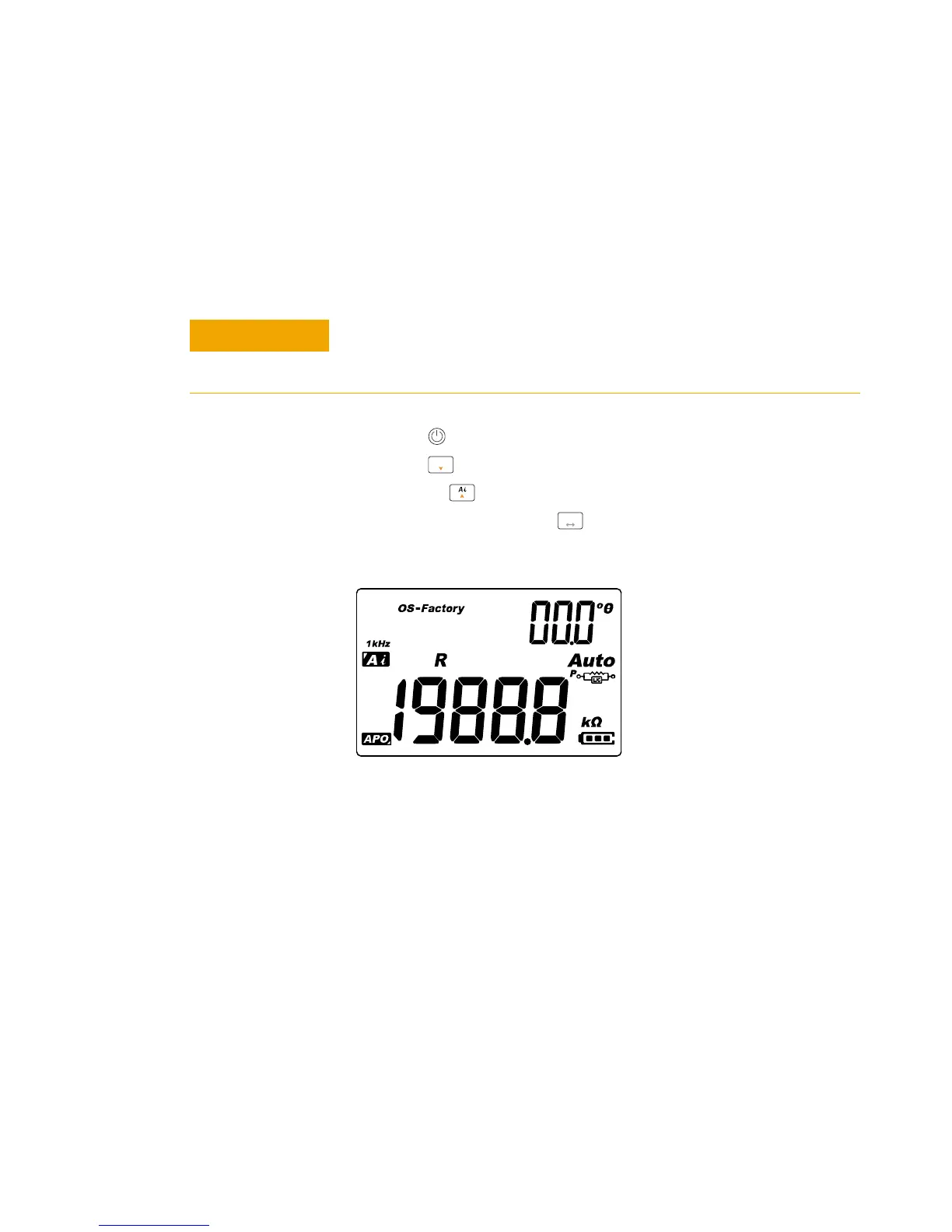

Figure 2-6 Resistance measurement
3 Insert a resistor into the component socket or connect the
test clip to the component leads as required.
4 Read the display.
To avoid possible damage to your LCR meter or to the equipment under
test, disconnect the circuit power and discharge all high-voltage
capacitors before measuring resistance.
