Measuring inductance (L)
Set up your LCR meter to measure inductance as shown in
Figure 2- 3.
1 Press to power on the LCR meter.
2 Press to select a suitable test frequency, and
i press to enable the auto identification function; or
ii alternatively press to select inductance
measurement.

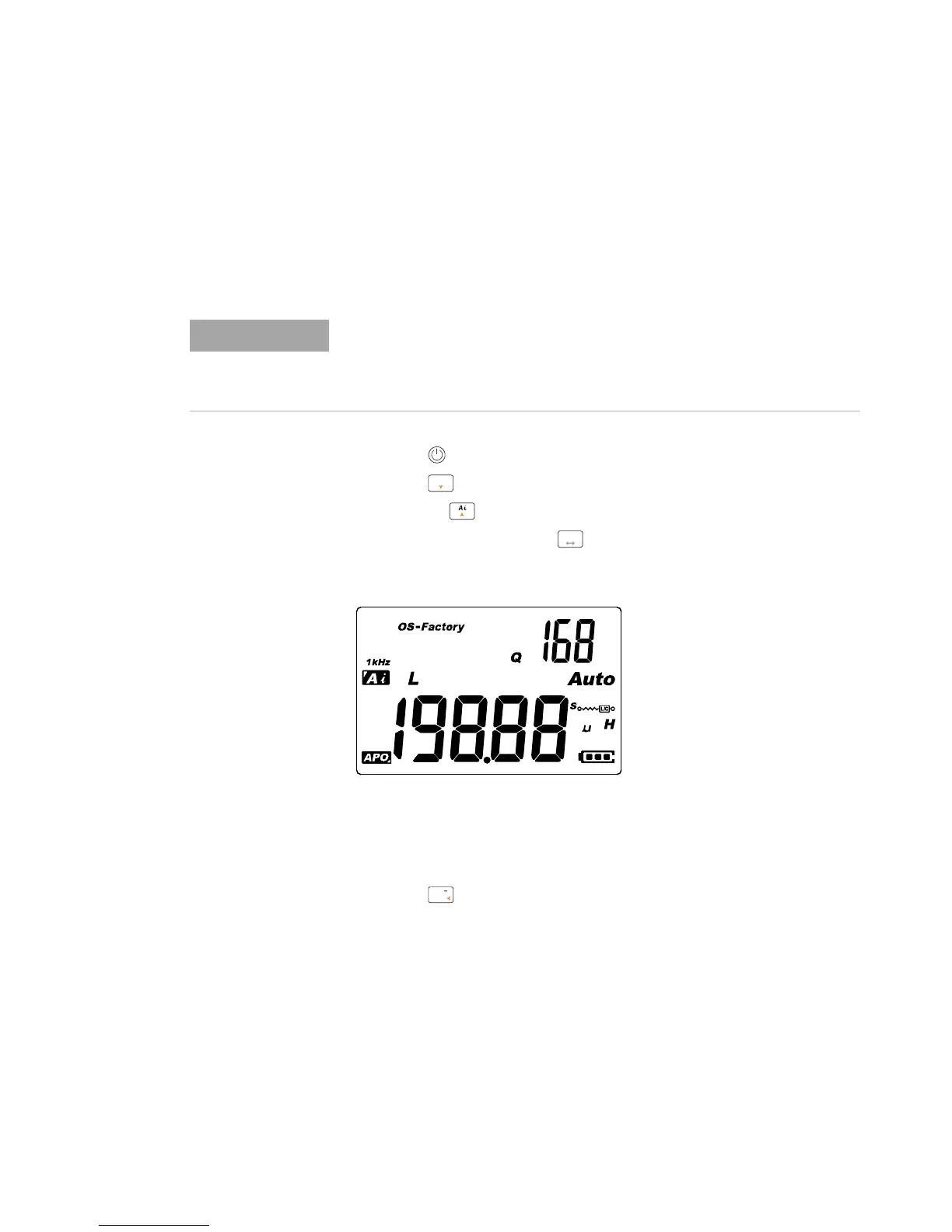

Figure 2-2 Inductance measurement with Q factor
3 Insert an inductor into the component socket or connect
the test clip to the component leads as required.
4 Press to change the secondary display measurement
(D, Q, or θ).
5 Read the displays.
It is recommended that you perform the Open/Short calibration (see
page 46) before testing to achieve optimum precision for all inductance,
capacitance, and resistance measurements at either the highest or lowest
ranges.
